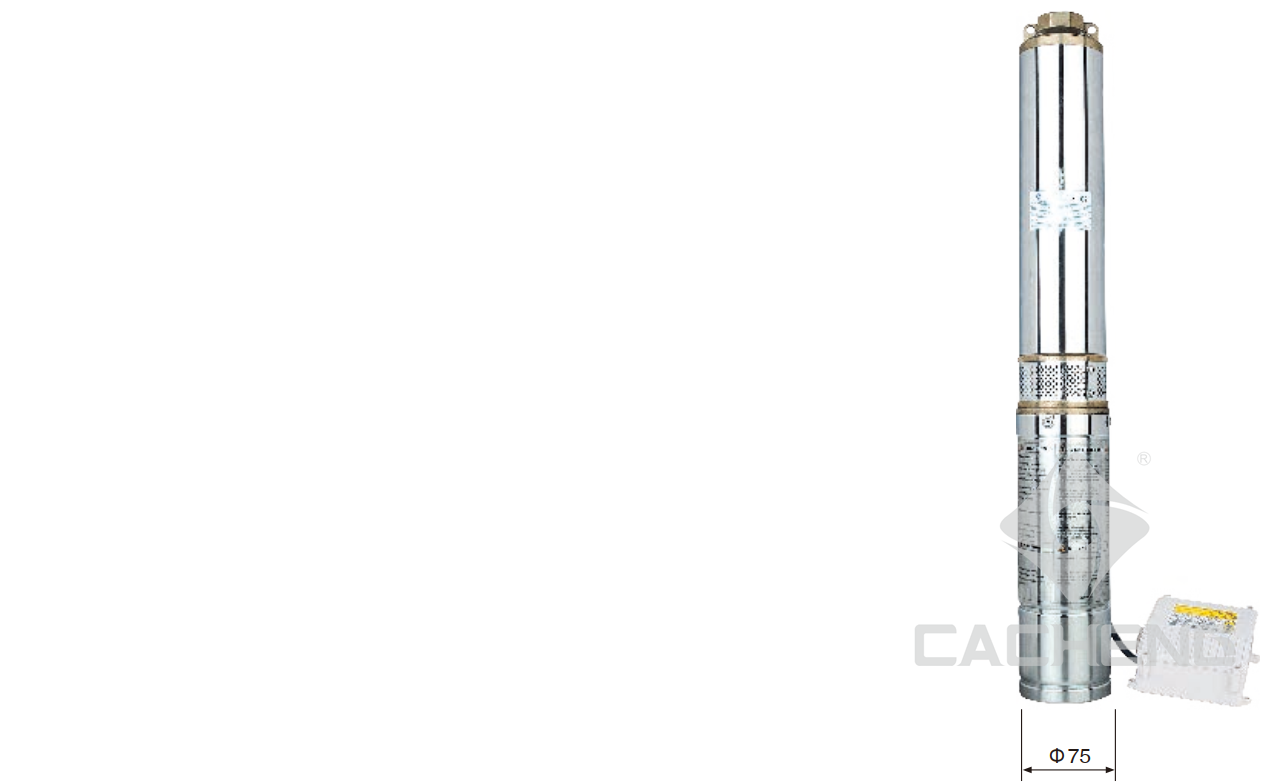

75QJ 3 Inch Submersible Borehole Pump

Max. liquid temperature: 40℃
Max. immersion depth: 70m
Min. diameter of well: Φ 75mm
Rewindable enclosed induction motor or full obturated screen coil motor (n=2900r.p.m.)
Continuous service
Power: 0.18-1.5kW (Single phase)
Power: 0.18-1.5kW (Three phase)
Insulation class: B
Protection grade: IP68

coming soon


Operating Limits:

Max. liquid temperature: 40℃

Max. immersion depth: 70m

Min. diameter of well: Φ 75mm


Motor:

Rewindable enclosed induction motor or full obturated screen coil motor (n=2900r.p.m.)

Continuous service

Power: 0.18-1.5kW (Single phase)

Power: 0.18-1.5kW (Three phase)

Insulation class: B

Protection grade: IP68


Application:

Multistage submersible water pumps for 3" deep wells

particularly suitable for civilian and industrial purposes

such as application to sprinkler and food plants, fire installation, etc

water supply from wells or reservoirs, for garden use and irrigation
