Powered with both AC and DC sources without making any modifications to the

pump or adding additional equipment.

Max. power output is 2200 W. The speed range for the motor is 500-3600rpm

depending on the power input and the load.

Main Founction:

Brushless, permanent magnet double shielded motor, frequency converter and

motor controller inside

Soft start running make system life longer

Powered by AC/DC

Supply voltage range: 90-360 VDC or 90-240 VAC at 50/60 Hz, 90-440 VOC

50Hz and 60Hz both working

Very easy installation

MPPT efficiency high, motor efficiency high, dry protection, reverse protection,

Over head protection, overload protection, over-current protection, over-voltage

Protection, losting-phase protection, missing-voltage protection

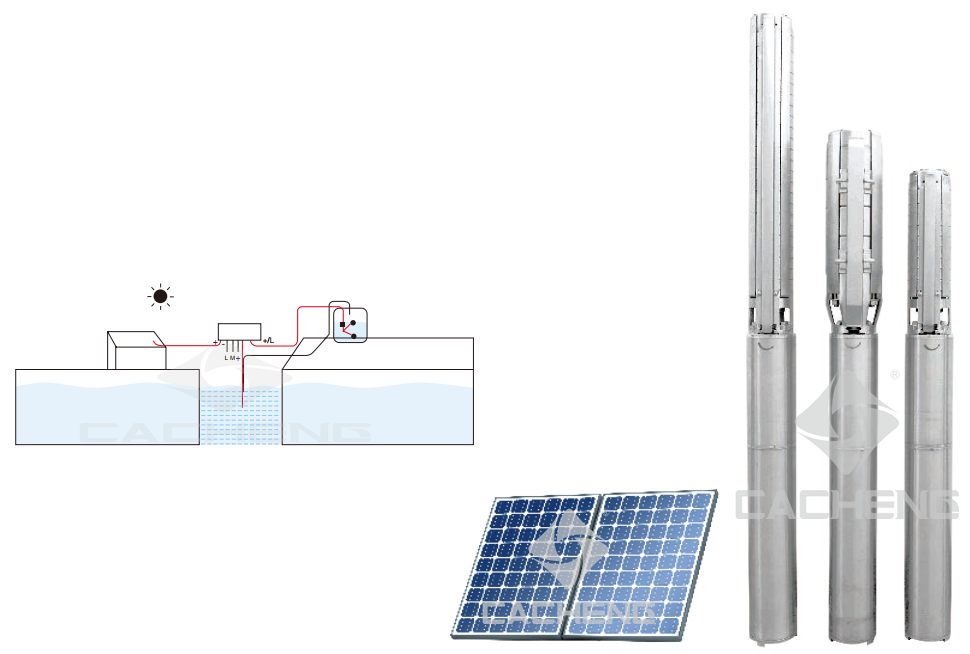

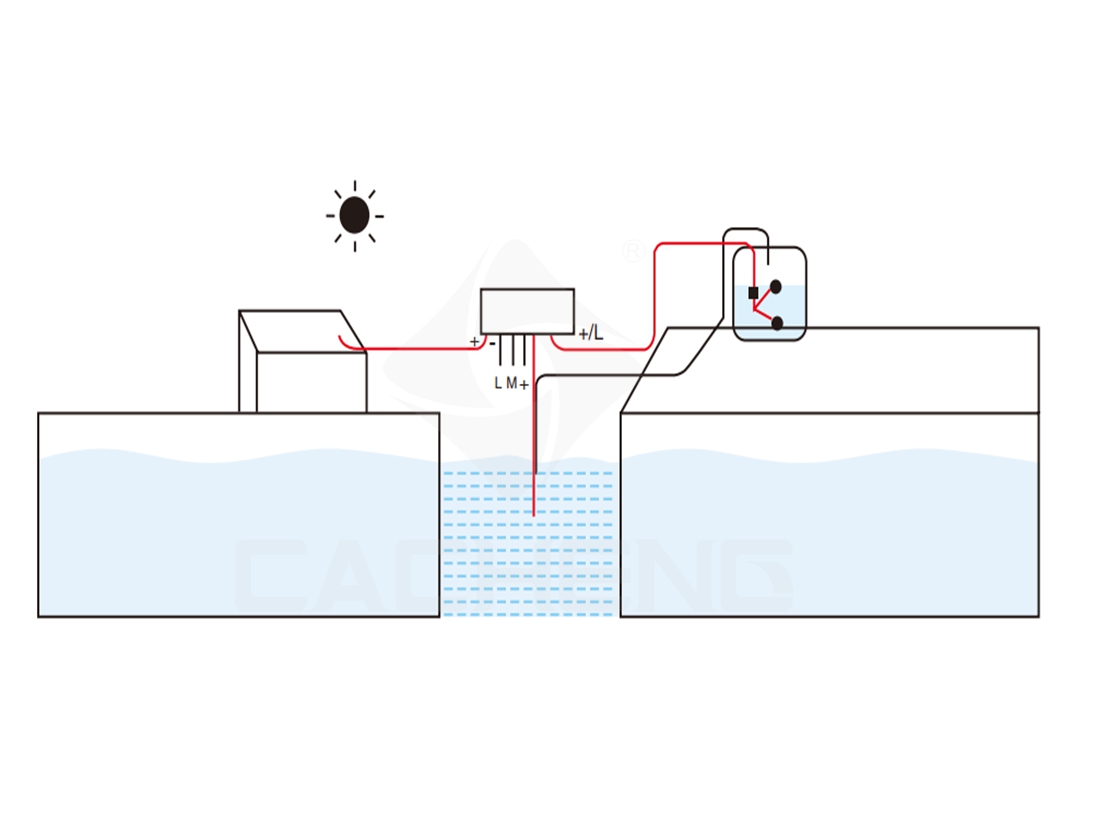

System Components:

The Solar water pumping system includes

Samking solar pump set

Solar panel and it's mounting structure

Cable

Pipes

Monitor (Non-compulsory)

Variety of flow available in 5 to 400 lpm

Motor and drive ratings available in 0.5 to 3 HP
