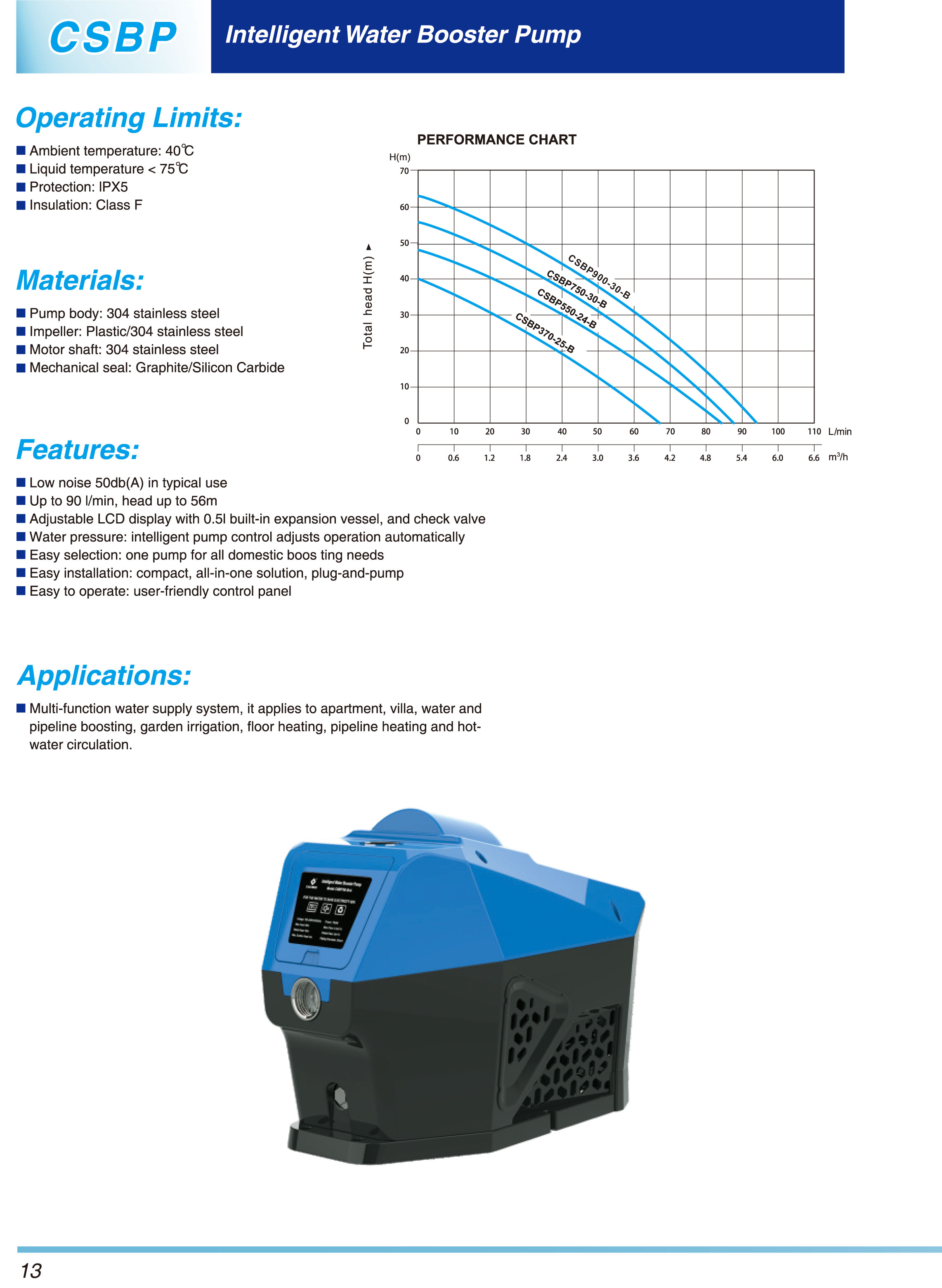

Operating Limits:

Ambient temperature: 40℃

Liquid temperature < 75℃

Protection: lPX5

Insulation: Class F

Materials:

Pump body: 304 stainless steel

Impeller: Plastic/304 stainless steel

Motor shaft: 304 stainless steel

Mechanical seal: Graphite/Silicon Carbide

Features:

Low noise 50db(A) in typical use

Up to 90 l/min, head up to 56m

Adjustable LCD display with 0.5l built-in expansion vessel, and check valve

Water pressure: intelligent pump control adjusts operation automatically

Easy selection: one pump for all domestic boos ting needs

Easy installation: compact, all-in-one solution, plug-and-pump

Easy to operate: user-friendly control panel

Applications:

Multi-function water supply system, it applies to apartment, villa, water and

pipeline boosting, garden irrigation, floor heating, pipeline heating and hotwater circulation
