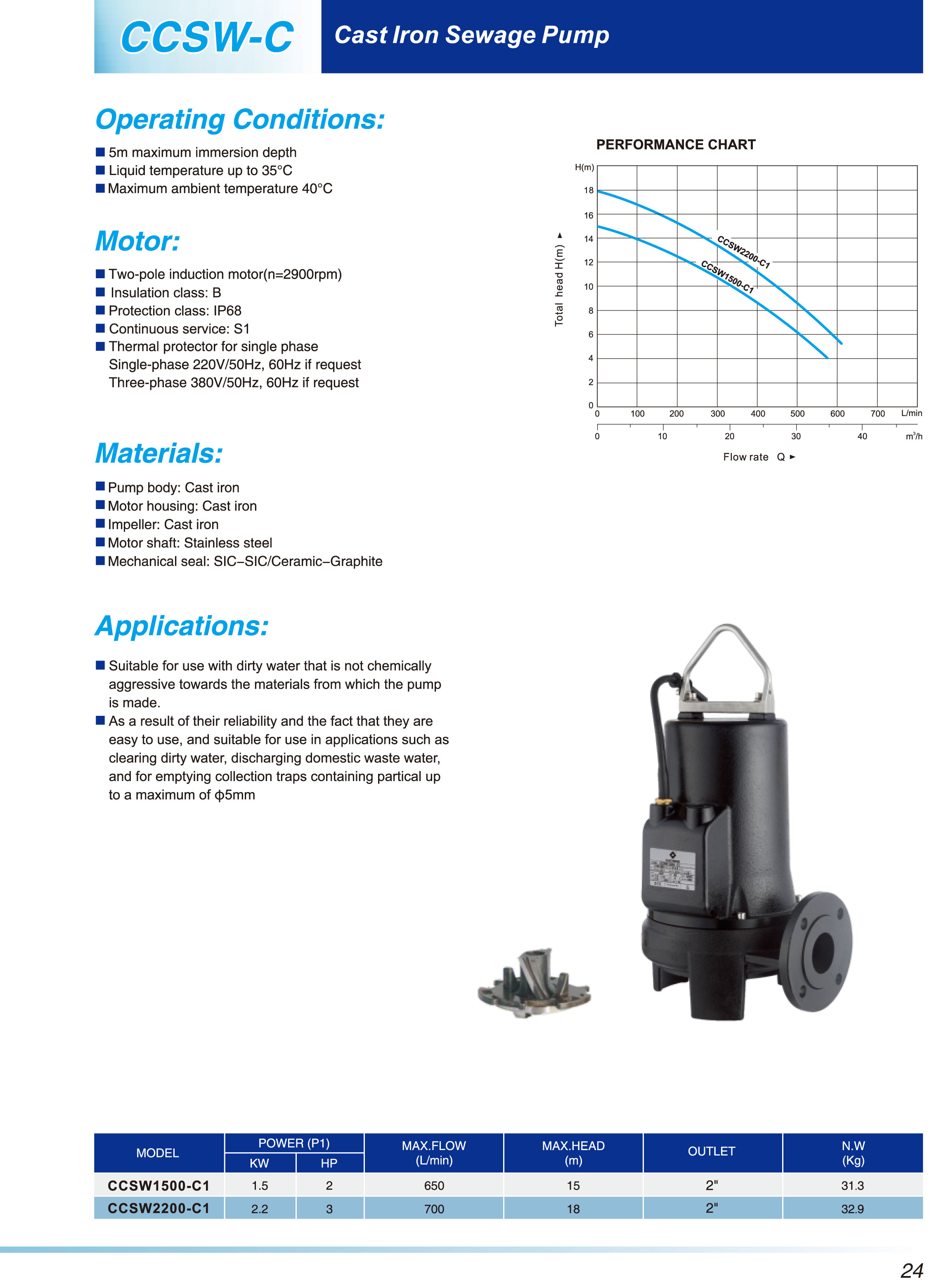

Operating Conditions:

5m maximum immersion depth

I Liquid temperature up to 35°C

I Maximum ambient temperature40°C

Motor:

Two-pole induction motor(n=2900rpm)

Insulation class: B

Protection class: IP68

Continuous service:S1

Thermal protector for single phase

Single-phase 220V/50Hz, 60Hz if request

Three-phase 380V/50Hz, 60Hzif request

Materials:

Pump body:Cast iron

I Motor housing: Cast iron

IImpeller: Cast iron

I Motor shaft: Stainless steel

IMechanical seal:SIC-SIC/Ceramic-Graphite
