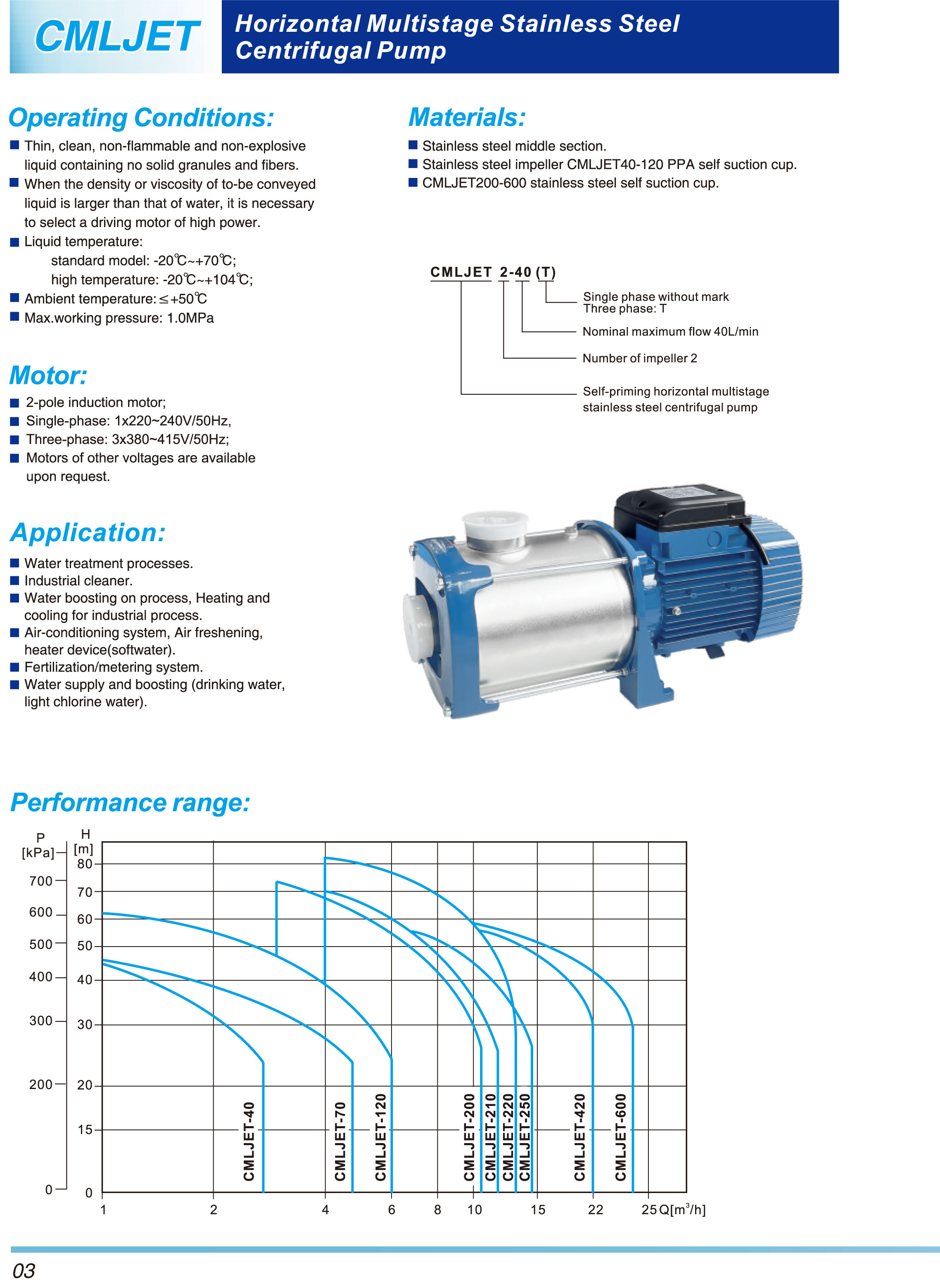

Operating Conditions:

Thin, clean, non-flammable and non-explosive

liquid containing no solid granules and fibers.

When the density or viscosity of to-be conveyed

liquid is larger than that of water, it is necessary

to select a driving motor of high power.

Liquid temperature:

standard model:-20℃~+70℃;

high temperature:-20℃~+104℃;

Ambient temperature:≤+50℃

Max.working pressure:1.0MPa

Motor:

2-pole induction motor;

Single-phase:1x220~240V/50Hz,

Three-phase: 3x380~415V/50Hz;

Motors of other voltages are available

upon request.

Materials:

Stainless steel middle section.

Stainless steel impeller CMLJET40-120 PPA self suction cup.

CMLJET200-600stainless steel self suction cup.

Application:

Water treatment processes.

Industrial cleaner.

Water boosting on process, Heating and

cooling for industrial process.

Air-conditioning system, Air freshening,

heater device(softwater).

Fertilization/metering system.

Water supply and boosting (drinking water,

light chlorine water).
