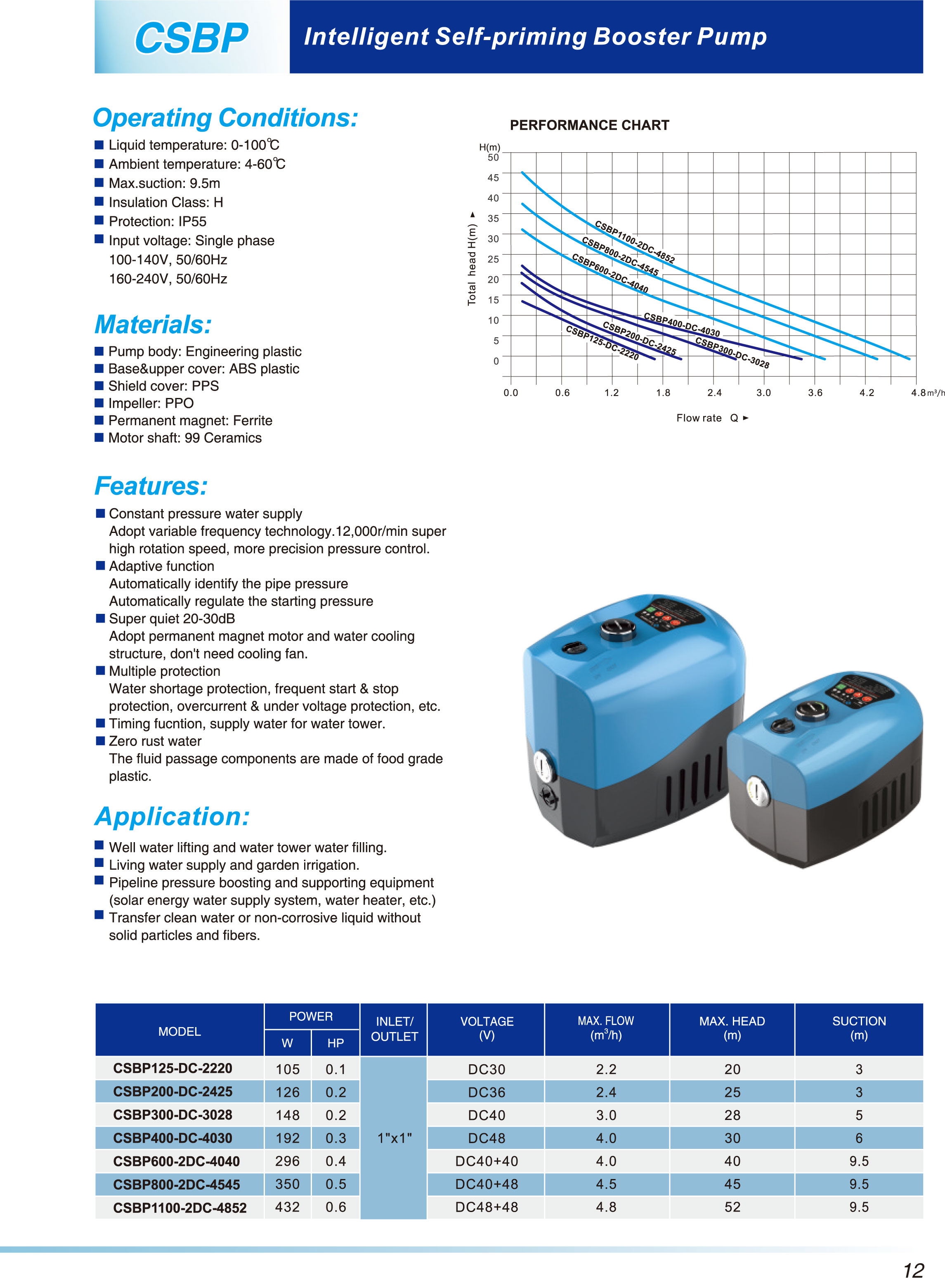

Operating Conditions:

Liquid temperature:0-100℃

Ambient temperature:4-60℃

Max.suction:9.5m

Insulation Class: H

Protection: IP55

Input voltage: Single phase

100-140V,50/60Hz

160-240V,50/60Hz

Materials:

Pump body: Engineering plastic

Base&upper cover:ABS plastic

Shield cover:PPS

Impeller: PPO

Permanent magnet:Ferrite

Motor shaft: 99Ceramics

Features:

Constant pressure water supply

Adopt variable frequency technology.12,000r/min super

high rotation speed, more precision pressure control.

Adaptive function

Automatically identify the pipe pressure

Automatically regulate the starting pressure

Super quiet 20-30dB

Adopt permanent magnet motor and water cooling

structure, don't need cooling fan.

Multiple protection

Water shortage protection, frequent start & stop

protection, overcurrent & under voltage protection, etc.

Timing fucntion, supply water for water tower.

Zero rust water

The fluid passage components are made of food grade

plastic.

Application:

Well water lifting and water tower water filling.

Living water supply and garden irrigation.

Pipeline pressure boosting and supporting equipment

(solar energy water supply system, water heater, etc.)

Transfer clean water or non-corrosive liquid without

solid particles and fibers.
