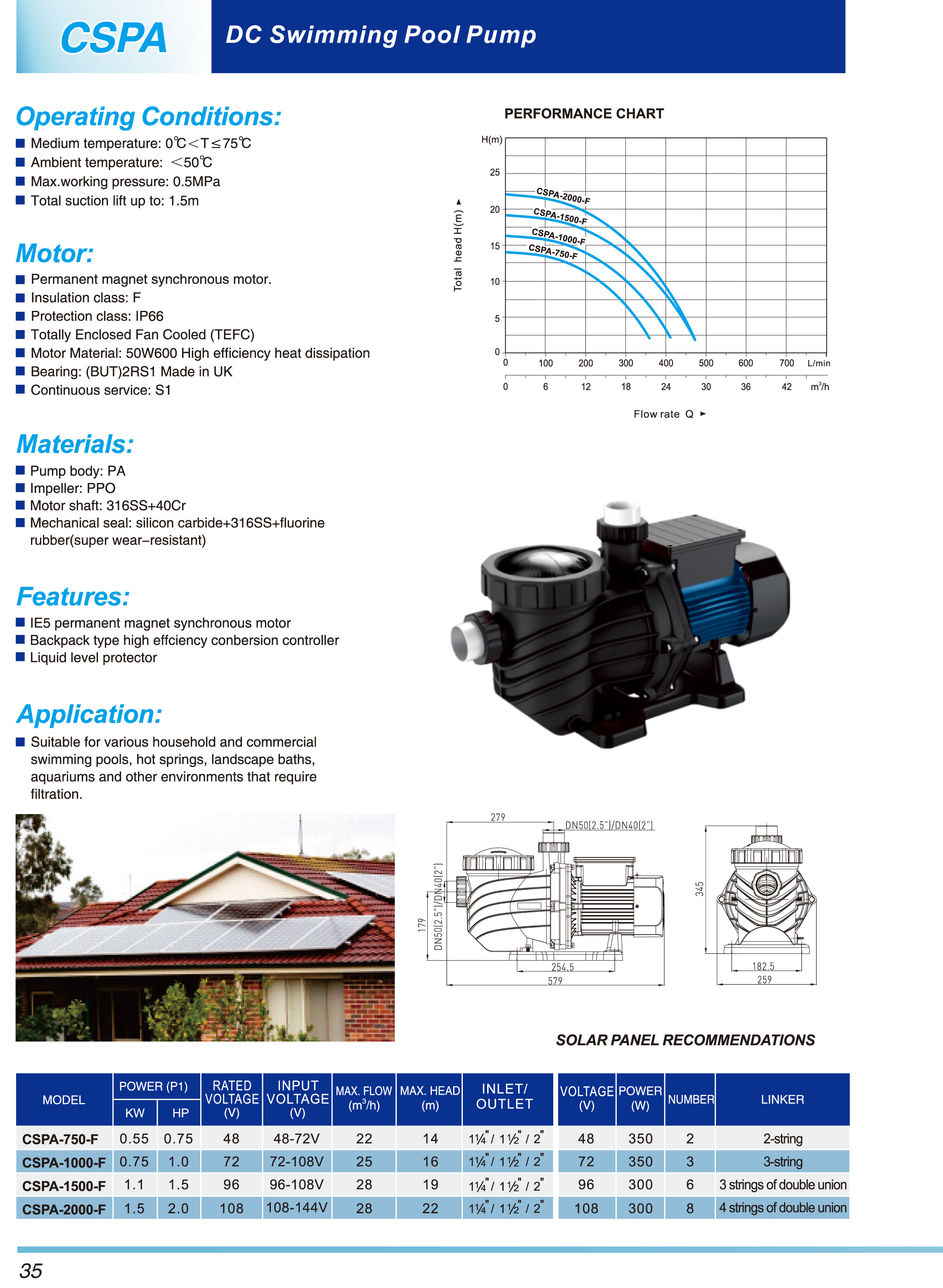

Operating Conditions:

Medium temperature:0℃<T≤75℃

Ambient temperature:<50℃

Max.working pressure: 0.5MPa

Total suction lift up to: 1.5m

Motor:

Permanent magnet synchronous motor.

Insulation class: F

Protection class:IP66

Totally Enclosed Fan Cooled(TEFC)

Motor Material: 50W600 High efficiency heat dissipation

Bearing: (BUT)2RS1 Made in UK

Continuous service:S1

Materials:

Pump body: PA

Impeller: PPO

Motor shaft: 316SS+40Cr

Mechanical seal: silicon carbide+316SS+fluorine

rubber(super wear-resistant)

Features:

IE5 permanent magnet synchronous motor

Backpack type high effciency conbersion controller

Liquid level protector

Application:

Suitable for various household and commercial

swimming pools, hot springs, landscape baths,

aquariums and other environments that require

filtration.
