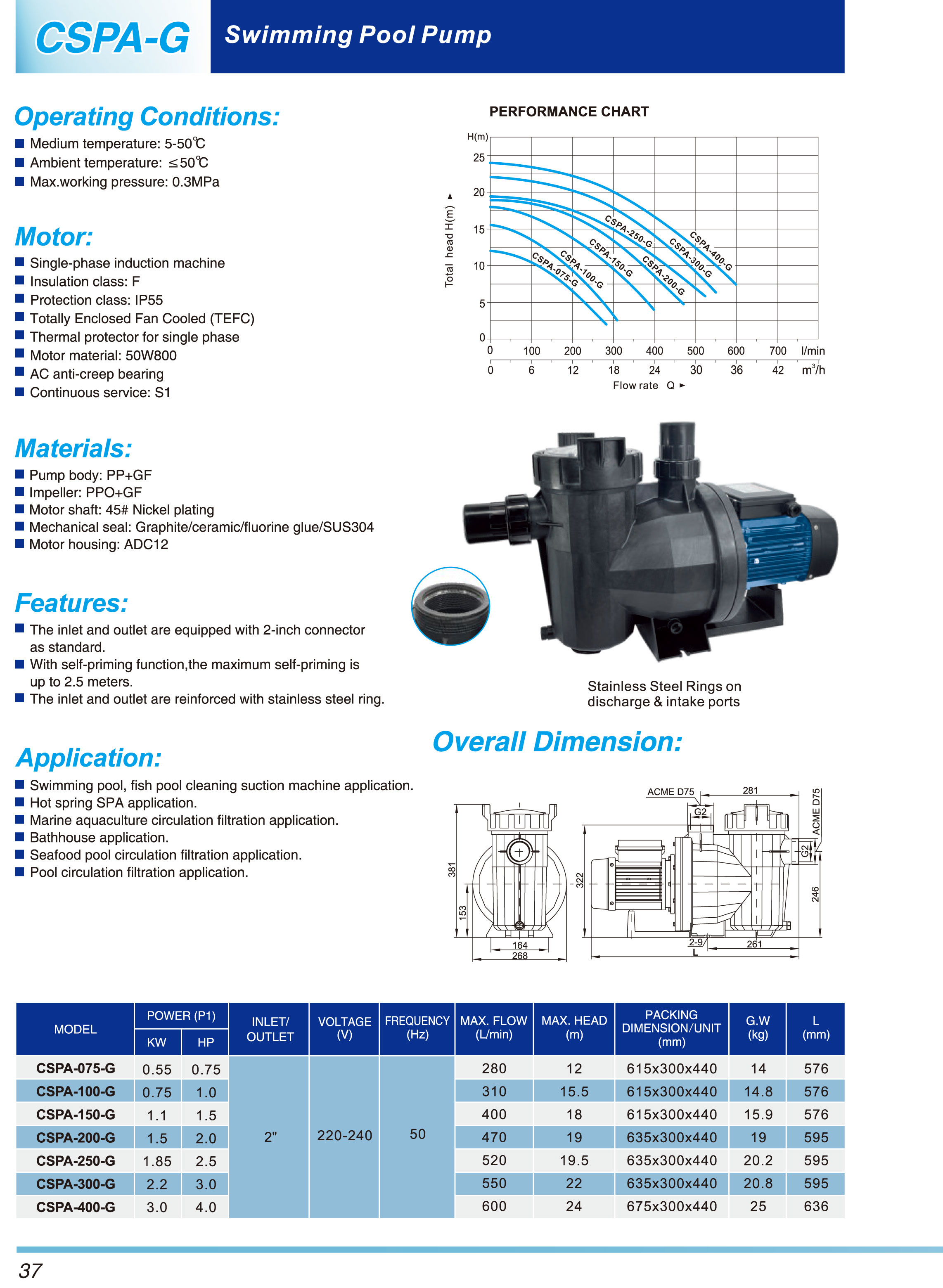

Operating Conditions:

Medium temperature:5-50℃

Ambient temperature:≤50℃

Max.working pressure:0.3MPa

Motor:

Single-phase induction machine

Insulation class: F

Protection class:IP55

Totally Enclosed Fan Cooled(TEFC)

Thermal protector for single phase

Motor material:50W800

AC anti-creep bearing

Continuous service:S1

Materials:

Pump body: PP+GF

Impeller: PPO+GF

Motor shaft: 45# Nickel plating

Mechanical seal: Graphite/ceramic/fluorine glue/SUS304

Motor housing: ADC12

Features:

The inlet and outlet are equipped with 2-inch connector

as standard.

With self-priming function,the maximum self-priming is

up to 2.5 meters.

The inlet and outlet are reinforced with stainless steel ring.

Application:

Swimming pool, fish pool cleaning suction machine application.

Hot spring SPA application.

Marine aquaculture circulation filtration application.

Bathhouse application.

Seafood pool circulation filtration application.

Pool circulation filtration application.
