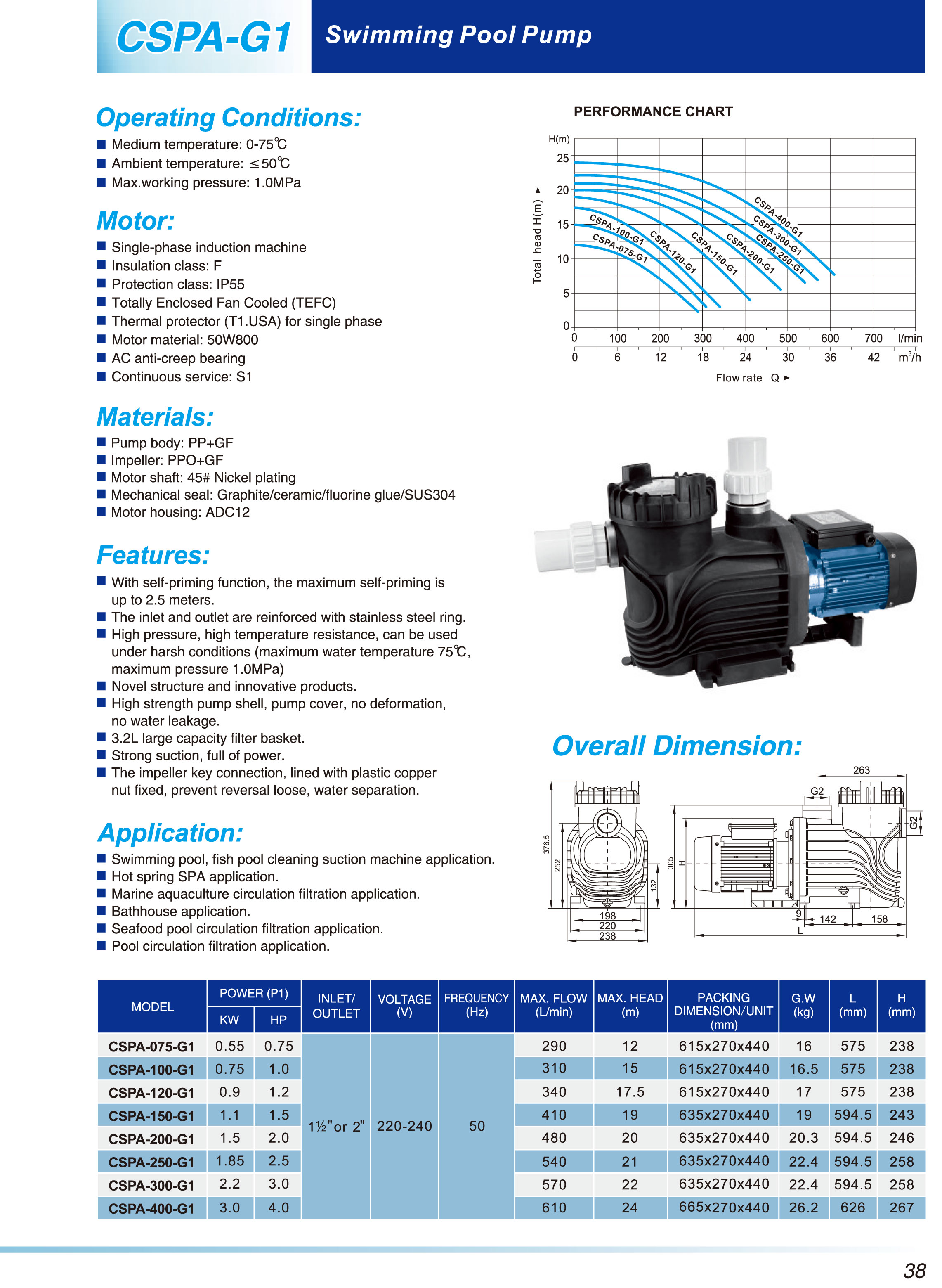

Operating Conditions:

Medium temperature:0-75℃

Ambient temperature:≤50℃

Max.working pressure: 1.0MPa

Motor:

Single-phase induction machine

Insulation class: F

Protection class: IP55

Totally Enclosed Fan Cooled(TEFC)

Thermal protector (T1.USA)for single phase

Motor material:50W800

AC anti-creep bearing

Continuous service:S1

Materials:

Pump body: PP+GF

Impeller: PPO+GF

Motor shaft: 45#Nickel plating

Mechanical seal: Graphite/ceramic/fluorine glue/SUS304

Motor housing:ADC12

Features:

With self-priming function, the maximum self-priming is

up to 2.5 meters.

The inlet and outlet are reinforced with stainless steel ring.

High pressure, high temperature resistance, can be used

under harsh conditions (maximum water temperature 75℃,

maximum pressure 1.0MPa)

Novel structure and innovative products.

High strength pump shell, pump cover, no deformation,

no water leakage.

3.2L large capacity filter basket.

Strong suction, full of power.

The impeller key connection, lined with plastic copper

nut fixed, prevent reversal loose, water separation.

Application:

Swimming pool, fish pool cleaning suction machine application.

Hot spring SPA application.

Marine aquaculture circulation filtration application.

Bathhouse application.

Seafood pool circulation filtration application.

Pool circulation filtration application.
