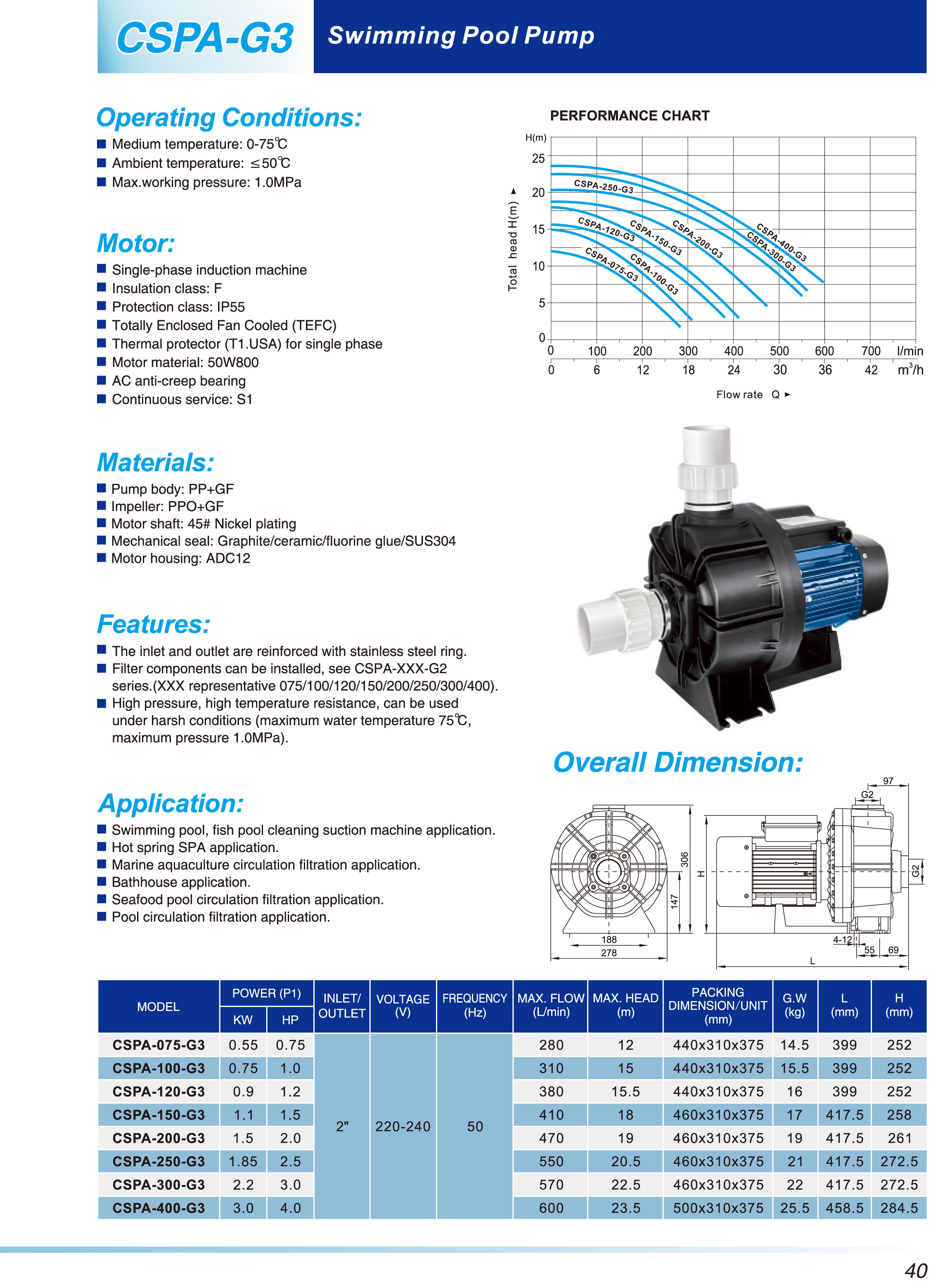

Operating Conditions:

Medium temperature:0-75℃

Ambient temperature:≤50℃

Max.working pressure: 1.0MPa

Motor:

Single-phase induction machine

Insulation class: F

Protection class:IP55

Totally Enclosed Fan Cooled(TEFC)

Thermal protector (T1.USA) for single phase

Motor material:50W800

AC anti-creep bearing

Continuous service:S1

Materials:

Pump body: PP+GF

Impeller: PPO+GF

Motor shaft: 45# Nickel plating

Mechanical seal: Graphite/ceramic/fluorine glue/SUS304

Motor housing:ADC12

Features:

The inlet and outlet are reinforced with stainless steel ring.

Filter components can be installed, seeCSPA-XXX-G2

series.(XXX representative 075/100/120/150/200/250/300/400).

High pressure, high temperature resistance, can be used

under harsh conditions (maximum water temperature 75℃,

maximum pressure 1.0MPa).

Application:

Swimming pool, fish pool cleaning suction machine application.

Hot spring SPA application.

Marine aquaculture circulation filtration application.

Bathhouse application.

Seafood pool circulation filtration application.

Pool circulation filtration application.
