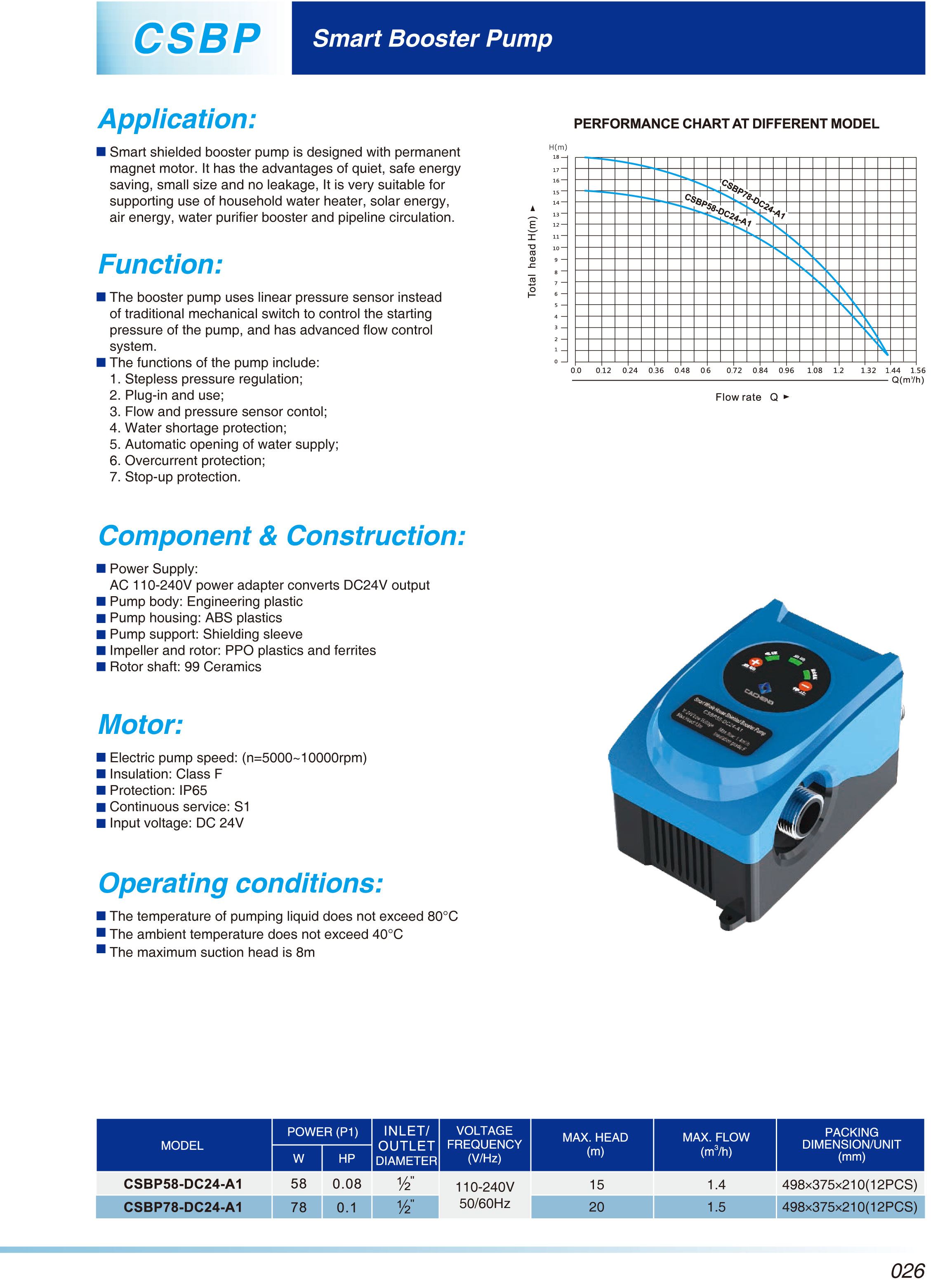

Application:

Smart shielded booster pump is designed with permanent

magnet motor. It has the advantages of quiet, safe energy

saving, small size and no leakage, It is very suitable for

supporting use of household water heater, solar energy,

air energy, water purifier booster and pipeline circulation.

Function:

The booster pump uses linear pressure sensor instead

of traditional mechanical switch to control the starting

pressure of the pump, and has advanced flow control

system.

The functions of the pump include:

1. Stepless pressure regulation;

2. Plug-in and use;

3. Flow and pressure sensor contol;

4. Water shortage protection;

5. Automatic opening of water supply;

6. Overcurrent protection;

7. Stop-up protection.

Component &Construction:

Power Supply:

AC 110-240V power adapter converts DC24V output

Pump body: Engineering plastic

Pump housing:ABS plastics

Pump support: Shielding sleeve

Impeller and rotor: PPO plastics and ferrites

Rotor shaft:99 Ceramics

Motor:

Electric pump speed:(n=5000~10000rpm)

Insulation: Class F

Protection: IP65

Continuous service: S1

Input voltage:DC 24V

Operating conditions:

The temperature of pumping liquid does not exceed 80C

The ambient temperature does not exceed 40°C

The maximum suction head is 8m
