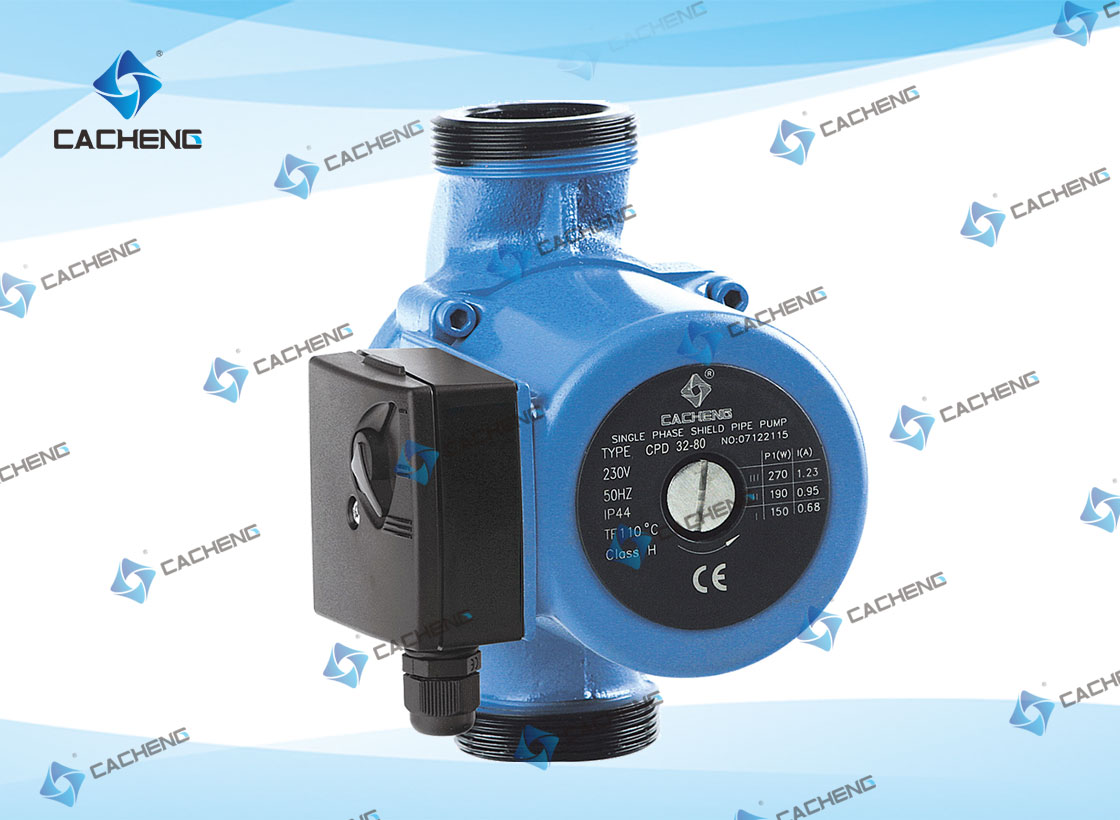

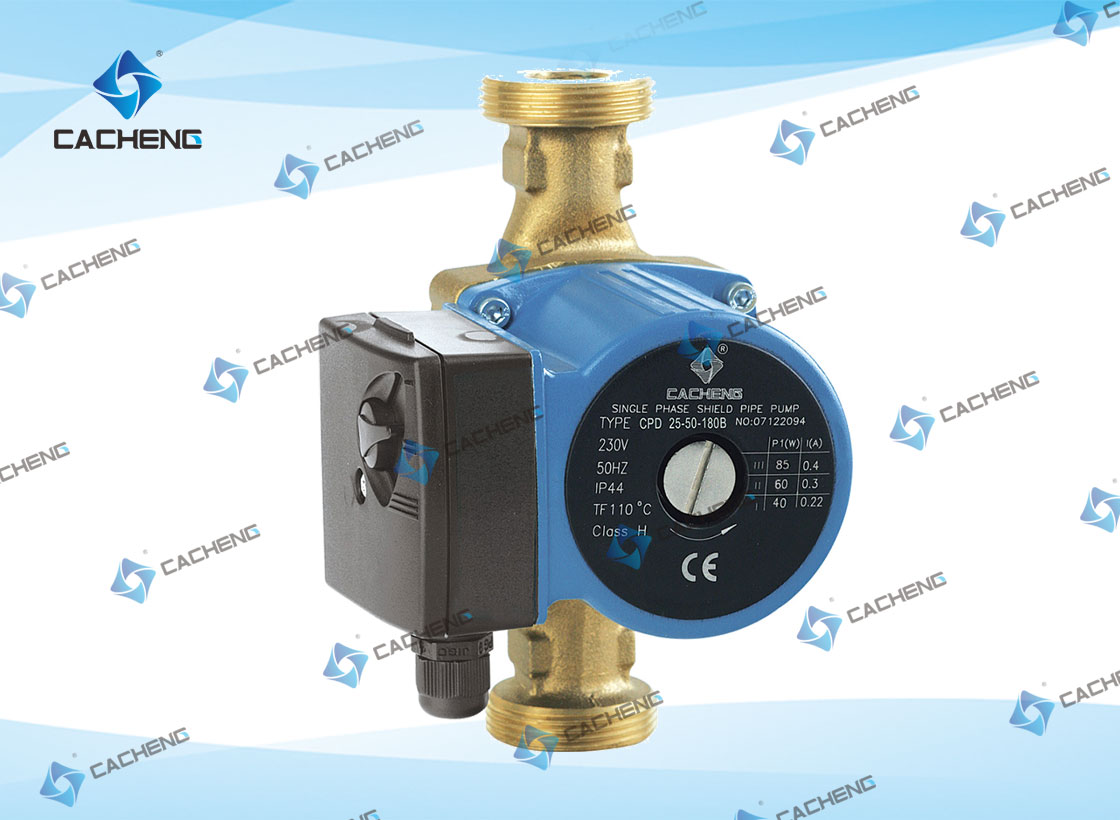

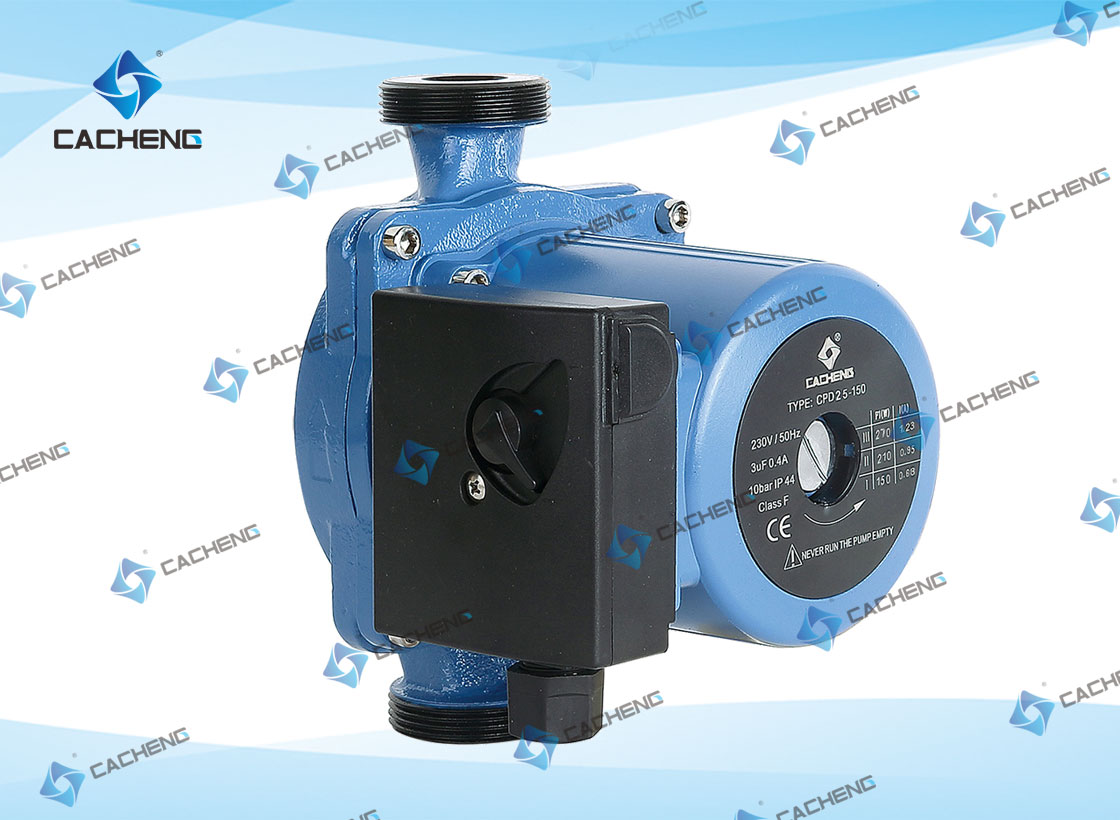

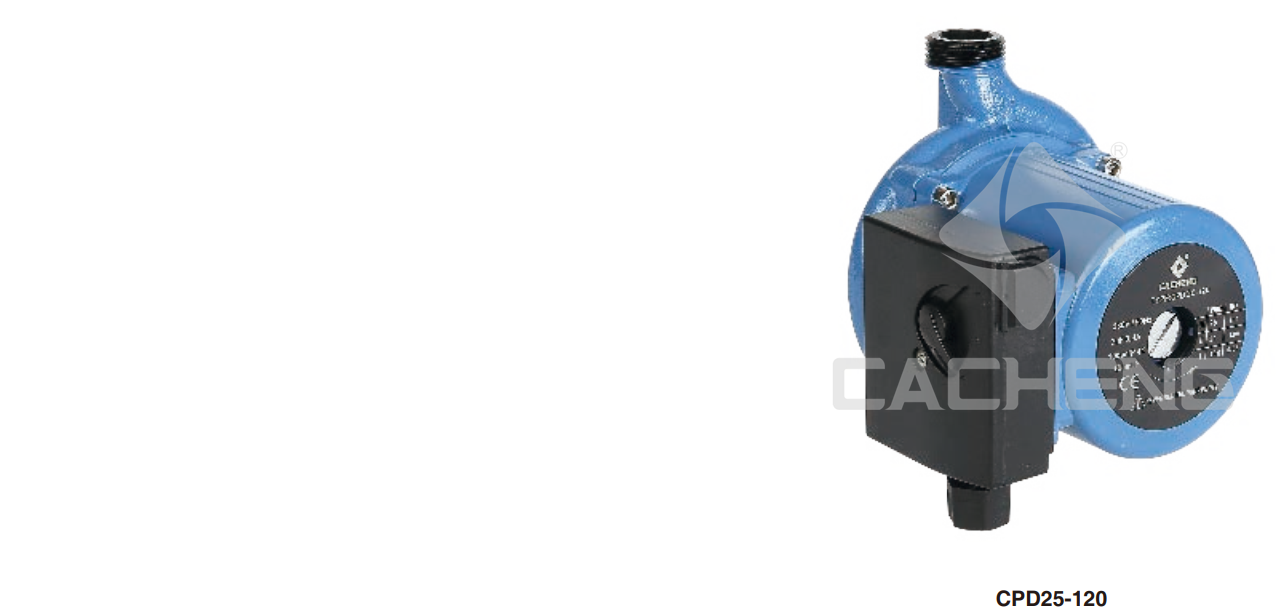

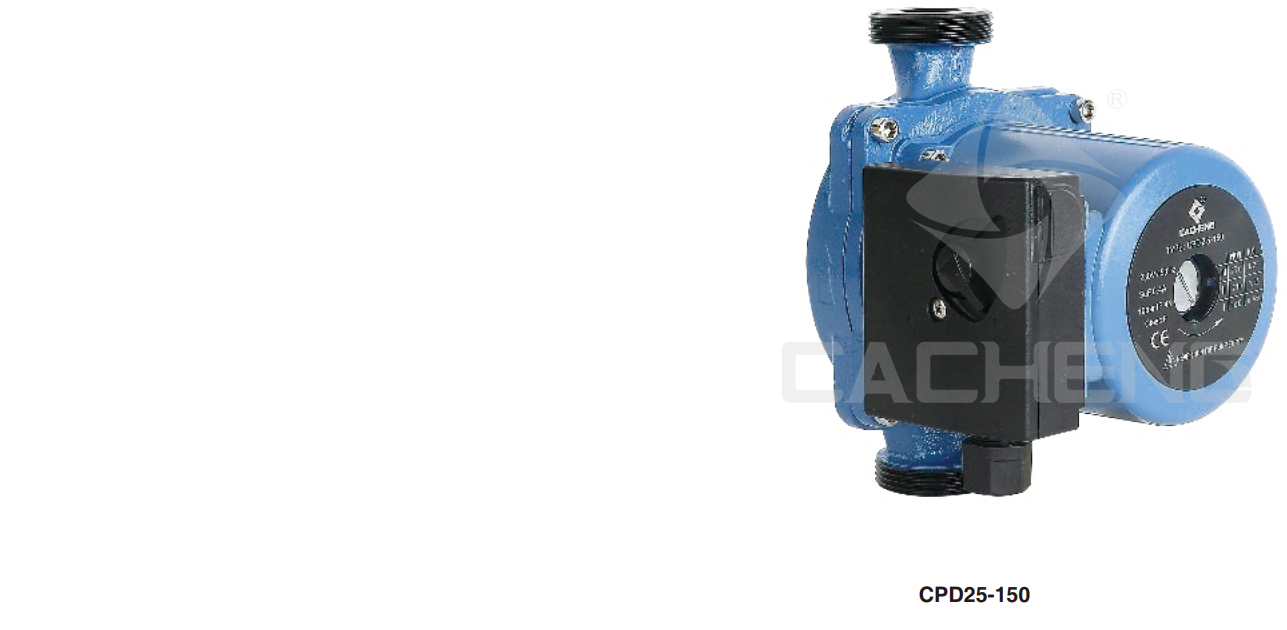

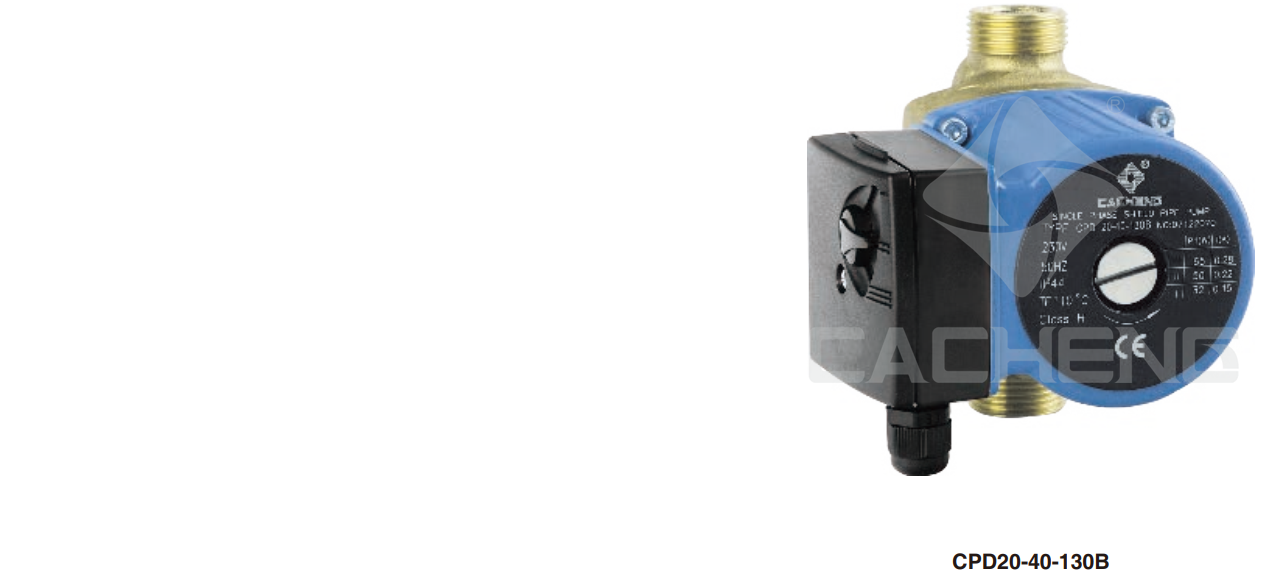

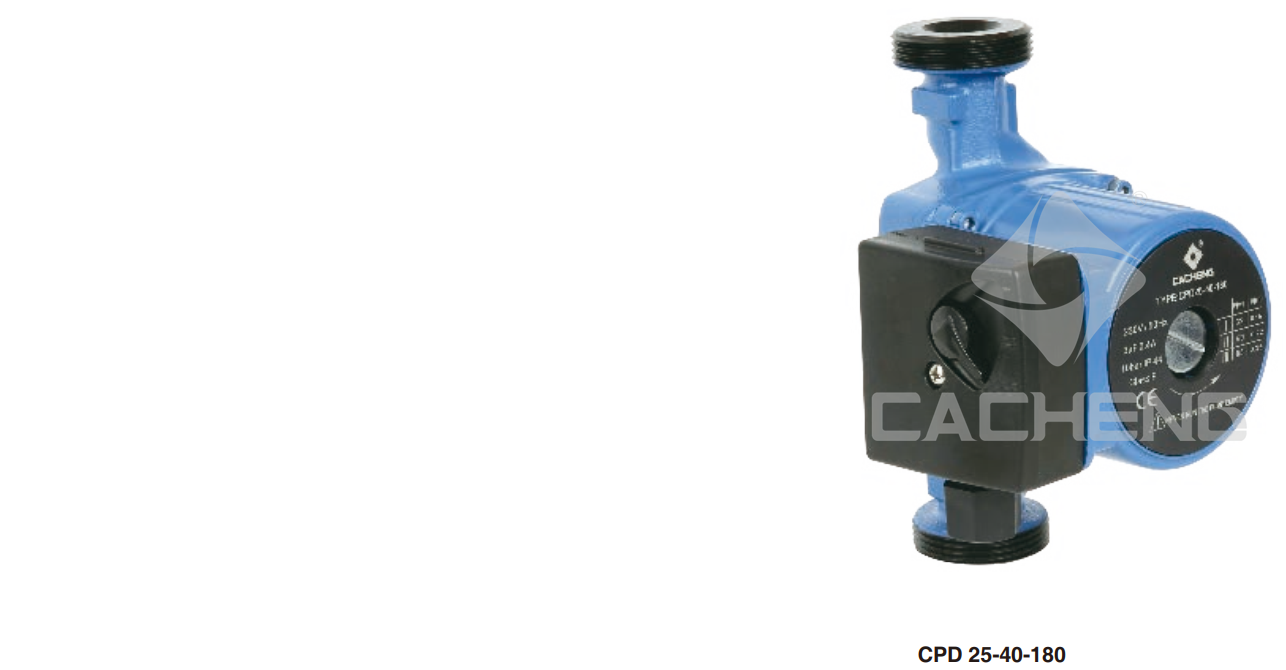

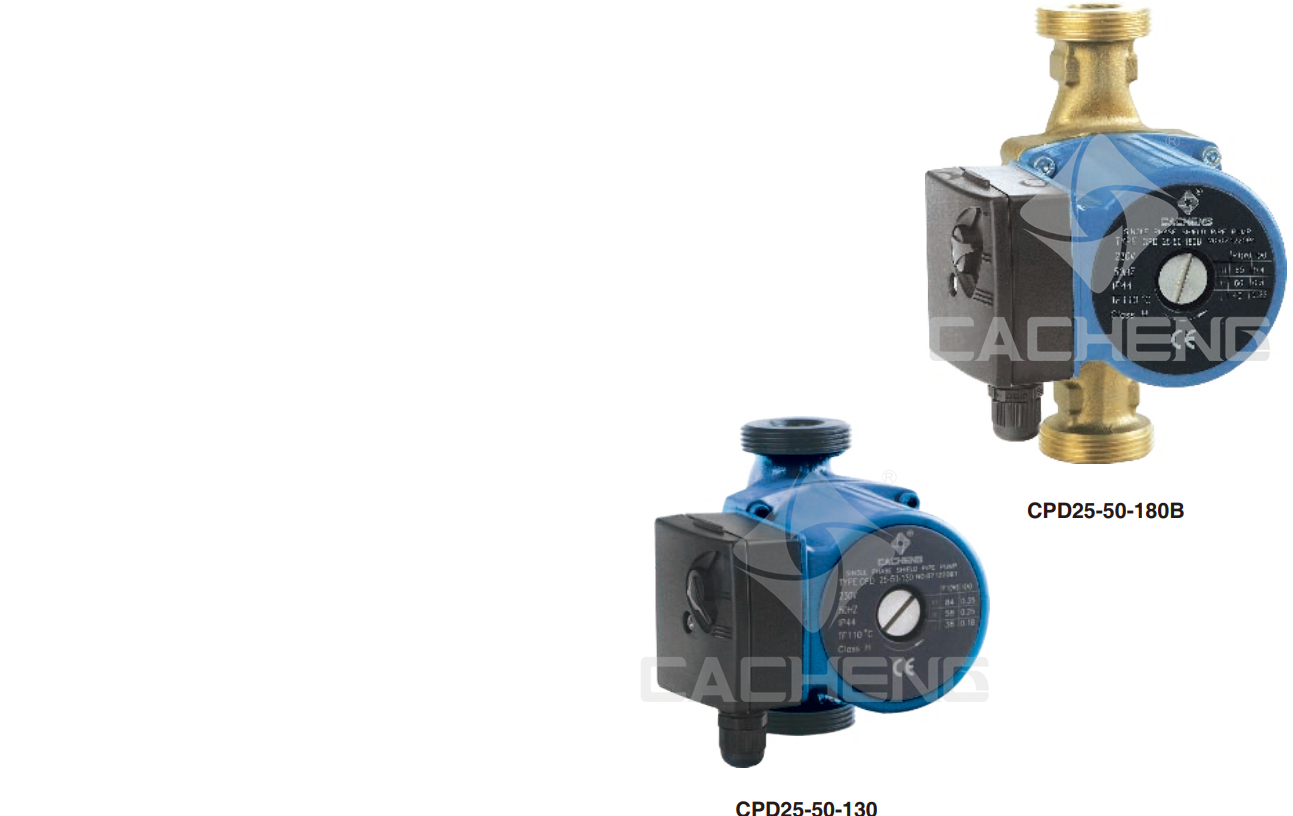

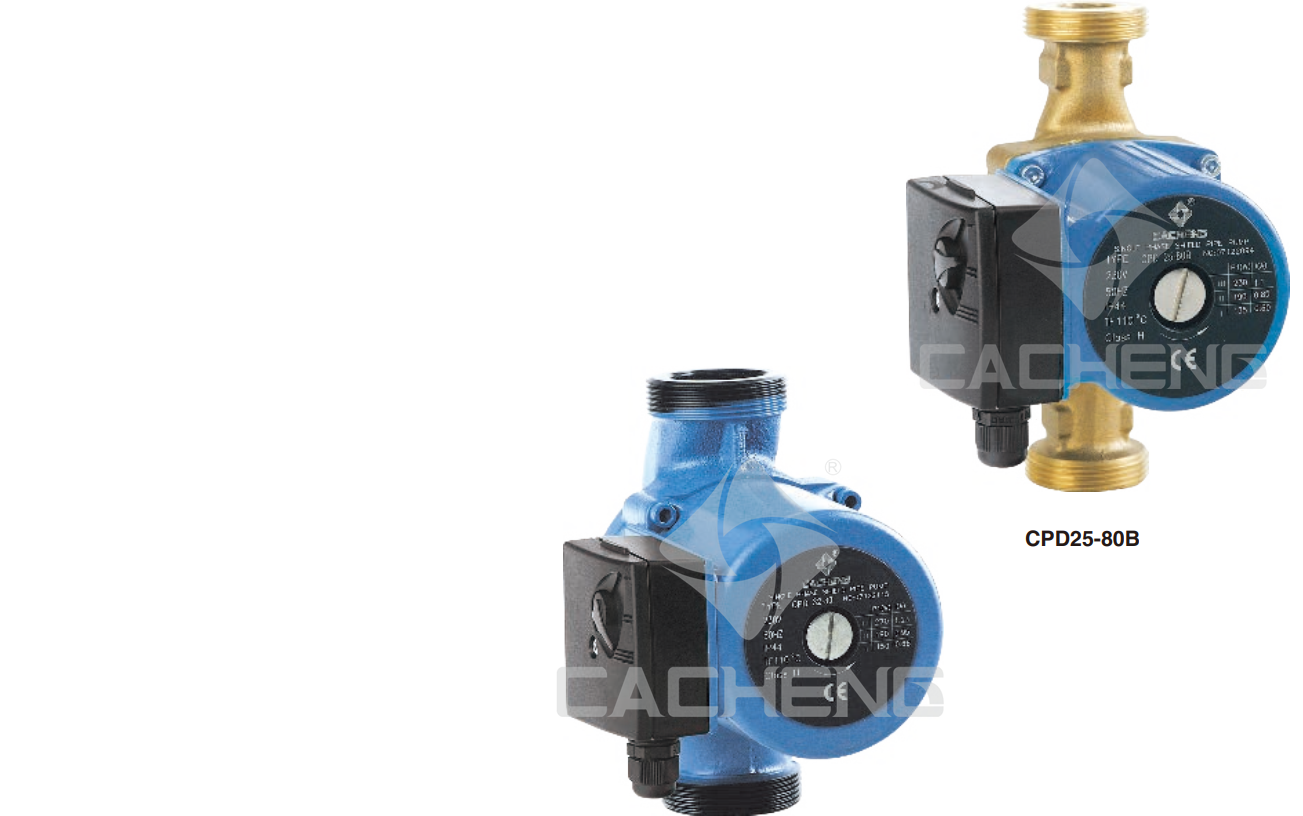

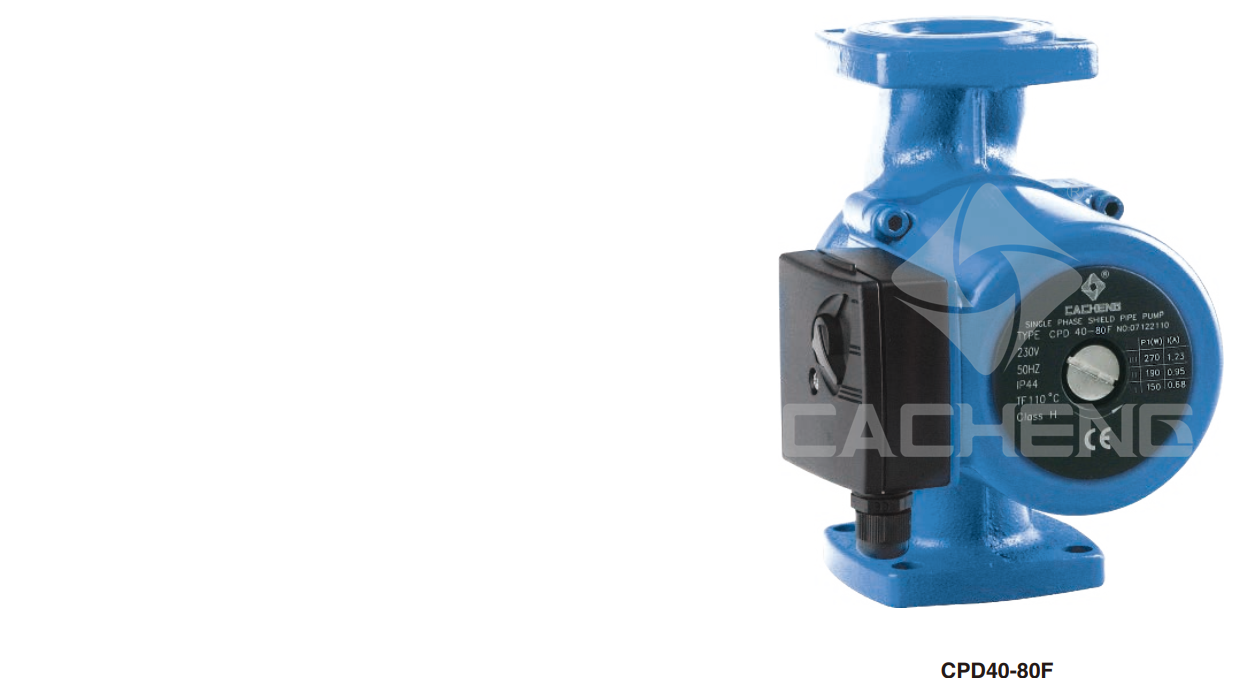

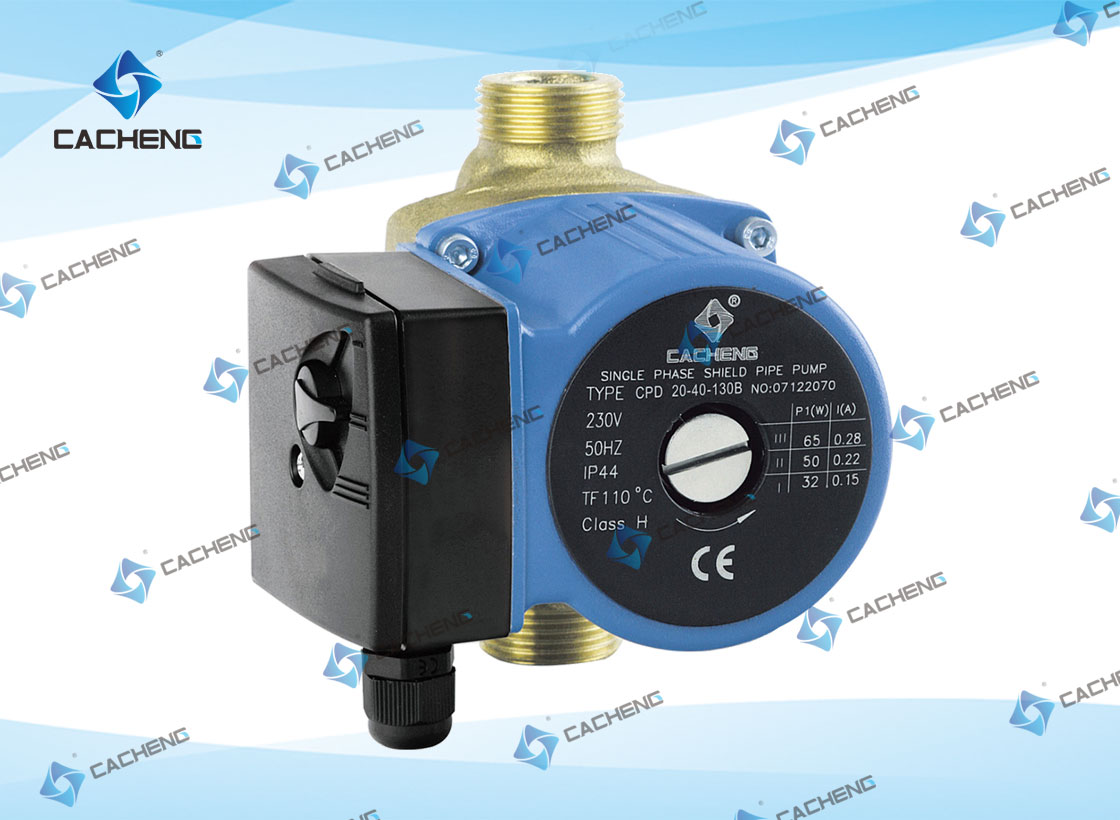

CPD Three-speed Circulator Pump

Liquid temperature from 2℃ to +110℃
Ambient temperature up to 40℃
Max. working pressure: 10bar
2-pole induction motor, single-phase 230V, 50Hz
Three adjustable speeds
Insulation class F
Protection IP 44

coming soon

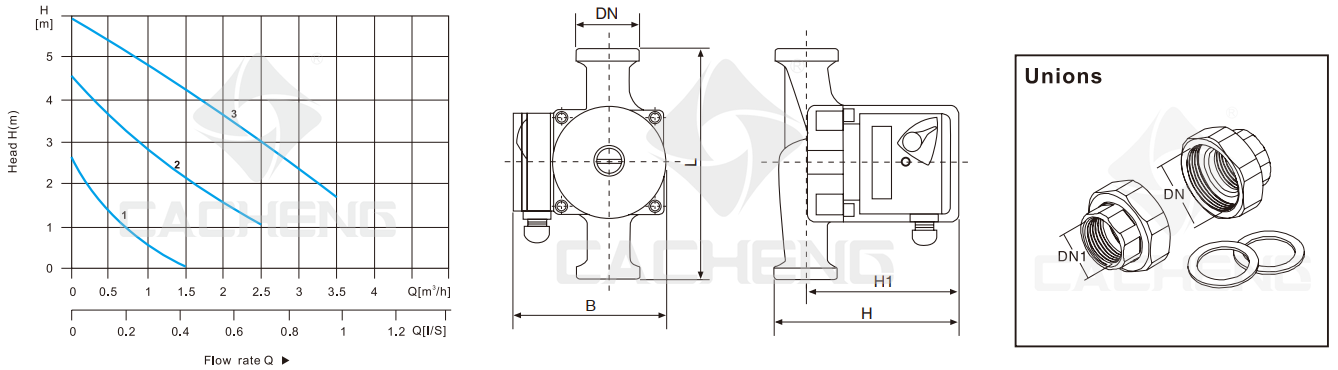

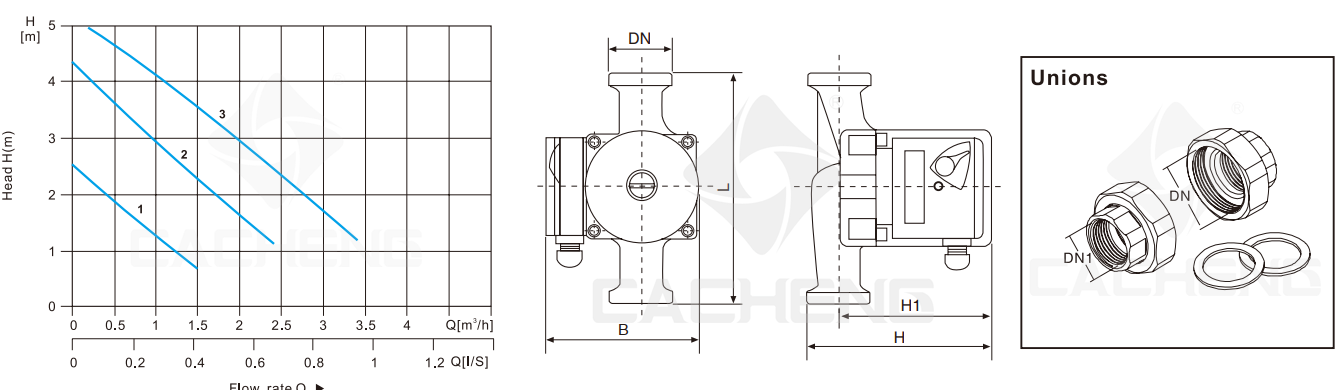

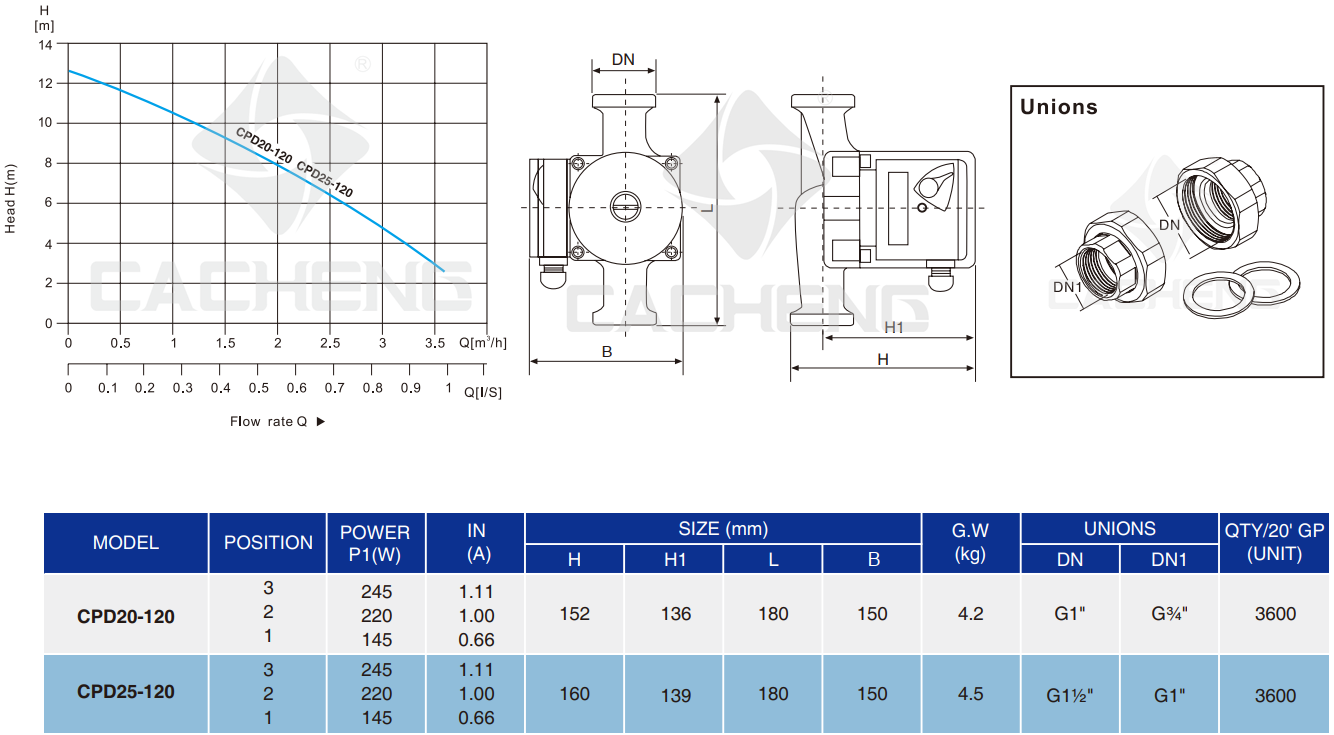

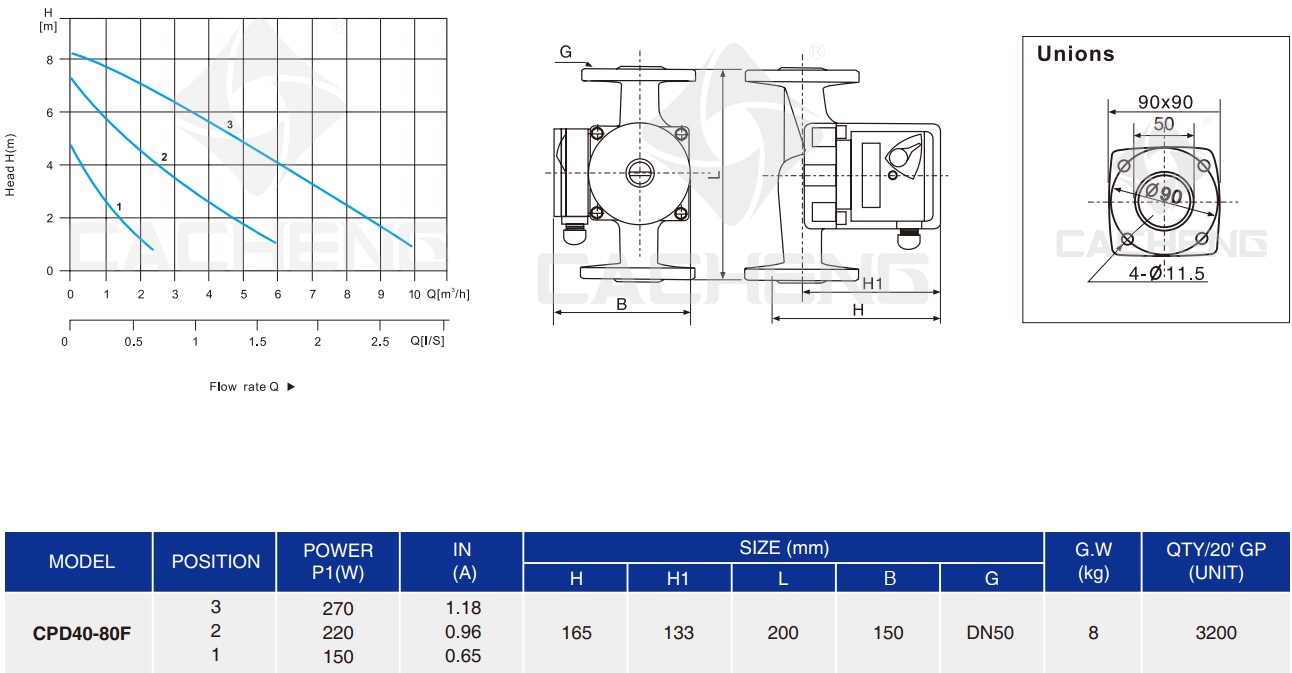

Construction:

Pump casing with suction and delivery connections with the

same diameter and on the same axis(in-line).

With fittings


Construction Material:

Pump body:Cast iron

Impeller:PP composite

Shaft:Ceramic

Bearings:Ceramic


Application:

For clean liquid without abrasives which are non-aggressive

to the pump material.

Civilian and industrial heating systems.

Cooling and air-conditioning systems.


Operating Conditions:

Liquid temperature from 2℃ to +110℃

Ambient temperature up to 40℃

Max. working pressure: 10bar


Motor:

2-pole induction motor, single-phase 230V, 50Hz

Three adjustable speeds

Insulation class F

Protection IP 44
