Operating Limits:

Liquid temperature:

Normal temperature type +15℃~+70℃

Hot water type +70℃ ~105℃

Max. ambient temperature: +40℃

Max. operation pressure: 10 bar

Max. inlet pressure is limited by max. operation pressure.

Continuous duty

Motor:

T.E.F.C. continuous

Voltage: 50Hz: 1x220~240V

3x220~240V/380~415V

60Hz: 1x220~240V

3x220~240V/380~415V

Insulation class: F

Protection: IP55

Single-phase motor with built-in thermal protector

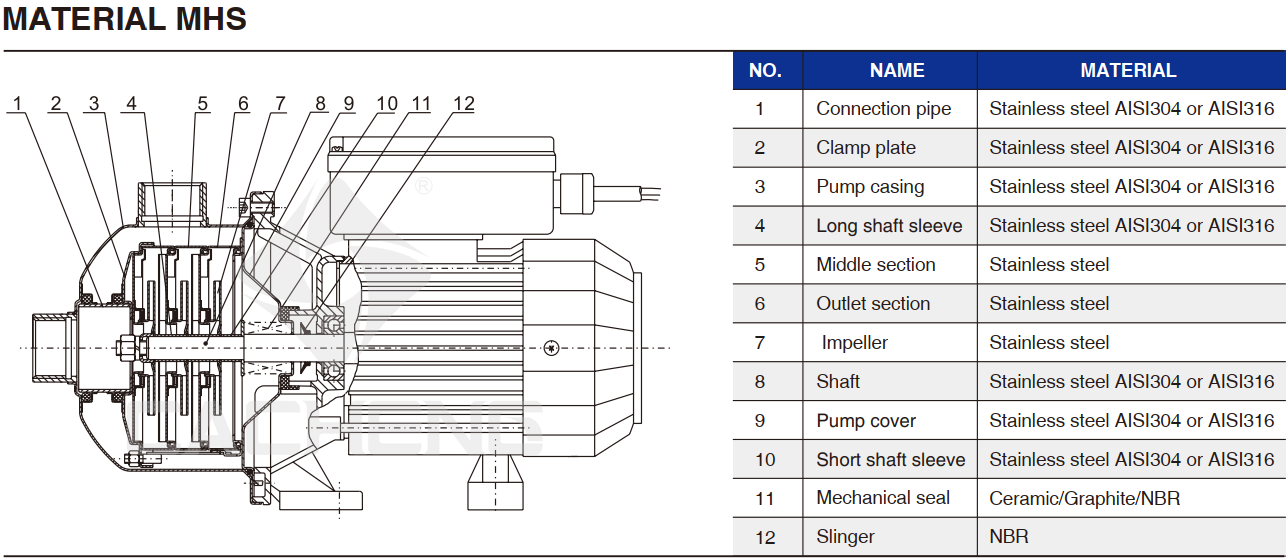

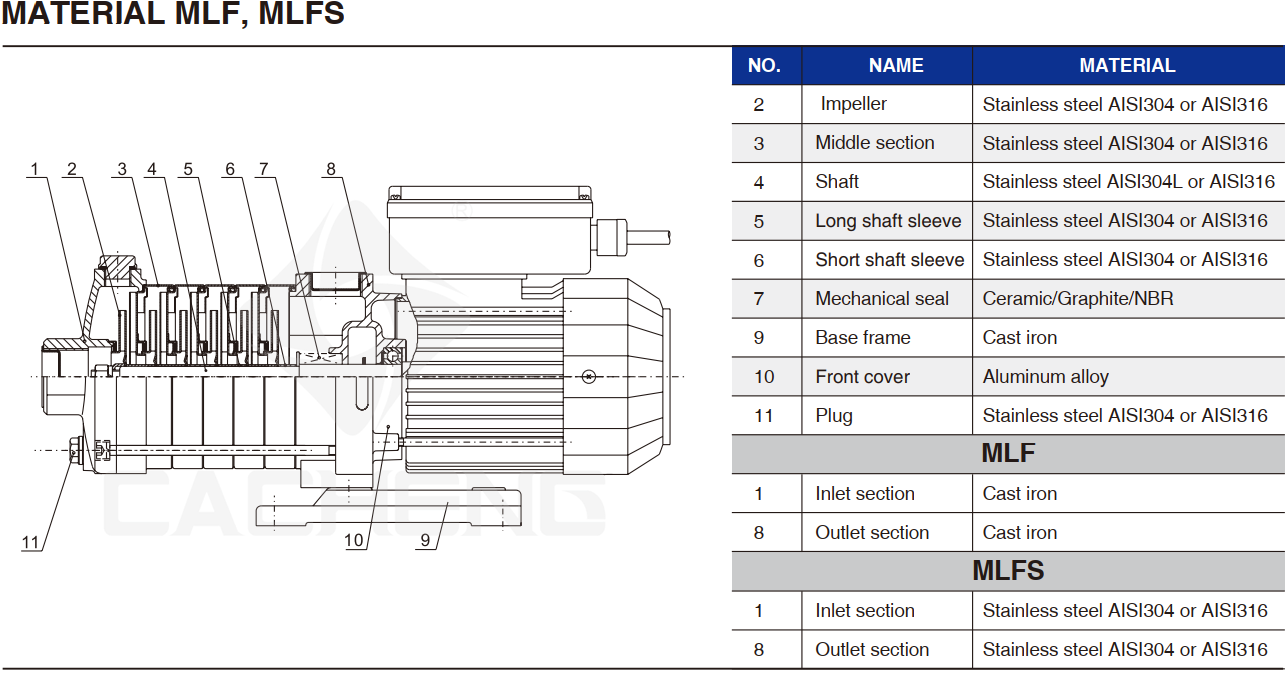

Material:

Thin, clean, non-flammable and non-explosive liquid

containing no solid granules and fibers.

Mineral water, soft water, pure water, edible vegetable

oil and other light chemical mediums. When density or

viscosity of the liquid is higher than that of water.

Whether the pump is suitable to convey the liquid

depends on many factors, among which the most

important ones are chlorine content, PH value,

temperature, solvent and oil content.

Application:

This series is primarily designed for the industrial purpose:

Water treatment processes

Industrial cleaner and dishwasher

Water boosting on process

Heating and cooling for industrial process

Air-conditioning system

Air heating, heating device (soft water)

Water supply and boosting (drinking water, light chlorine water)

Fertilization/metering system

Other specific applications

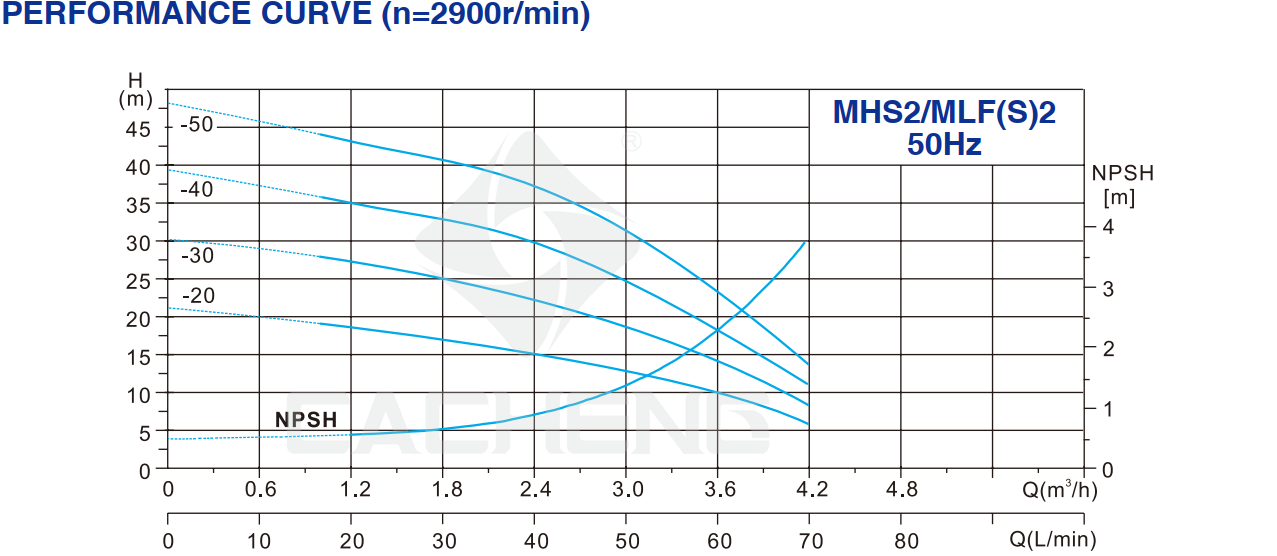

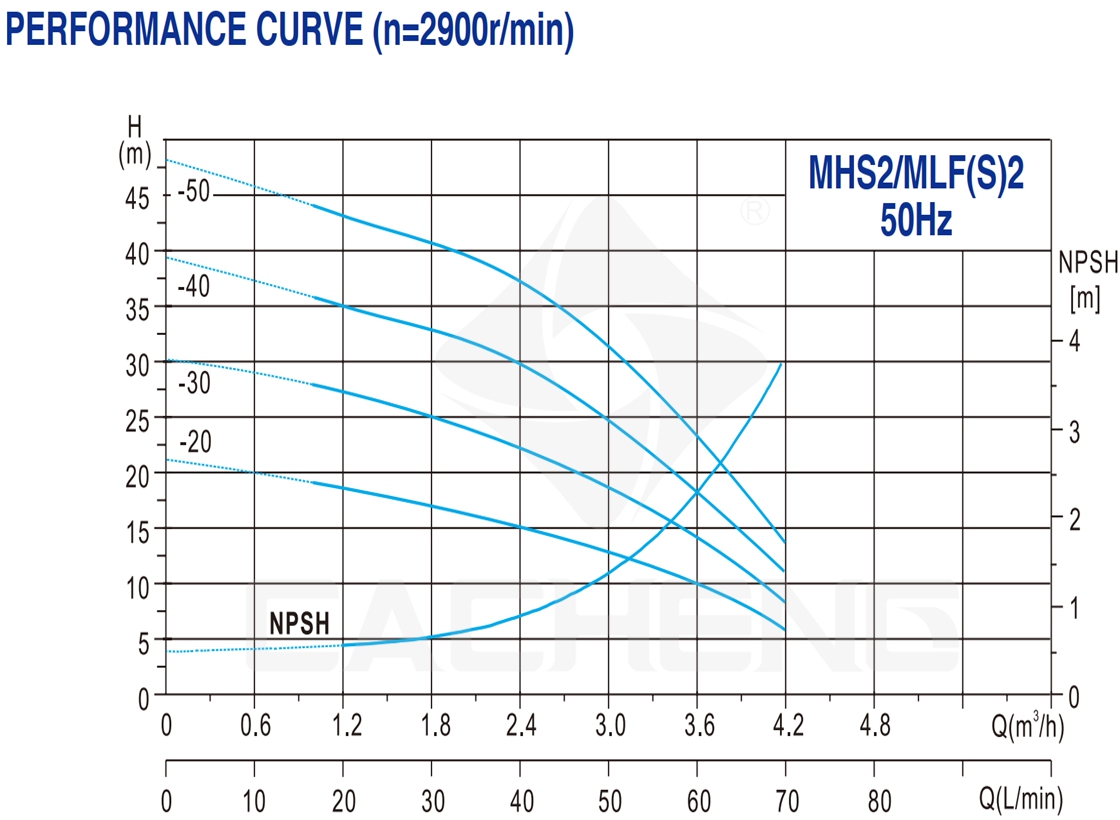

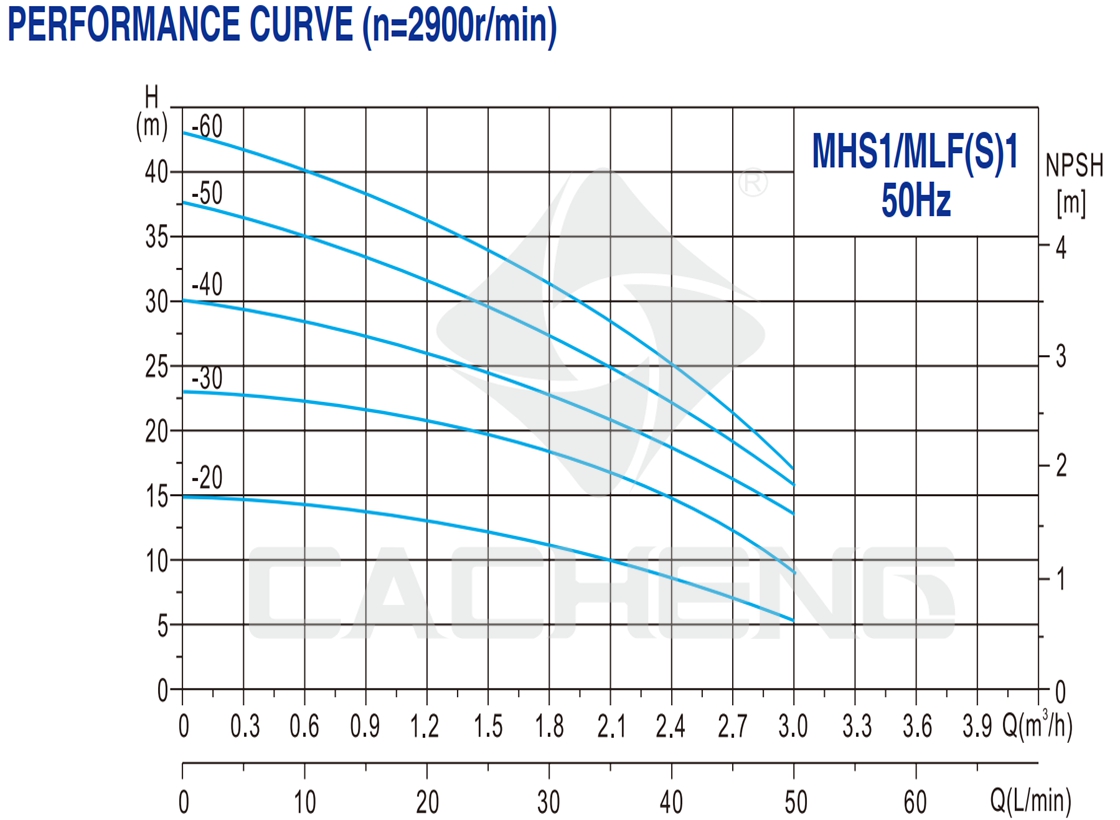

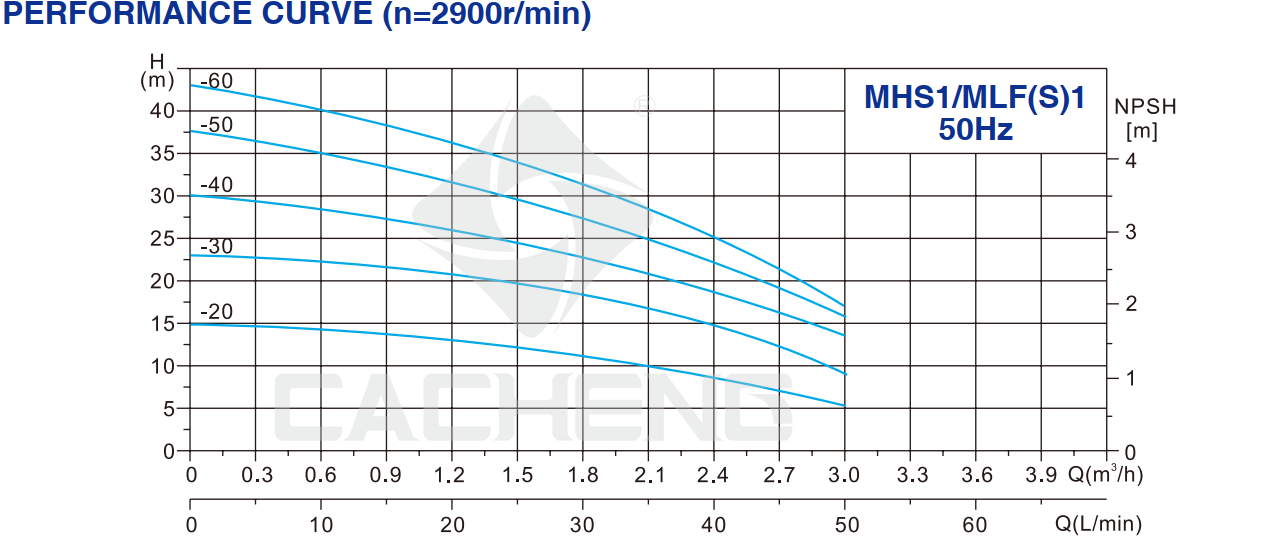

Performance Curve Resource:

Performance curve is based on the following:

Performance based on actual speed of standard motor.

Carring on test by 20℃ water without air.

Curve are suitable for deliverying liquid (ν =1mm2/s, ρ =1g/cm3 ).

The operation of pump shall refer to the perfromance region described by the thickened curre to prevent

overheating due to too small flow rate or overload of motor due to too large flow rate.
