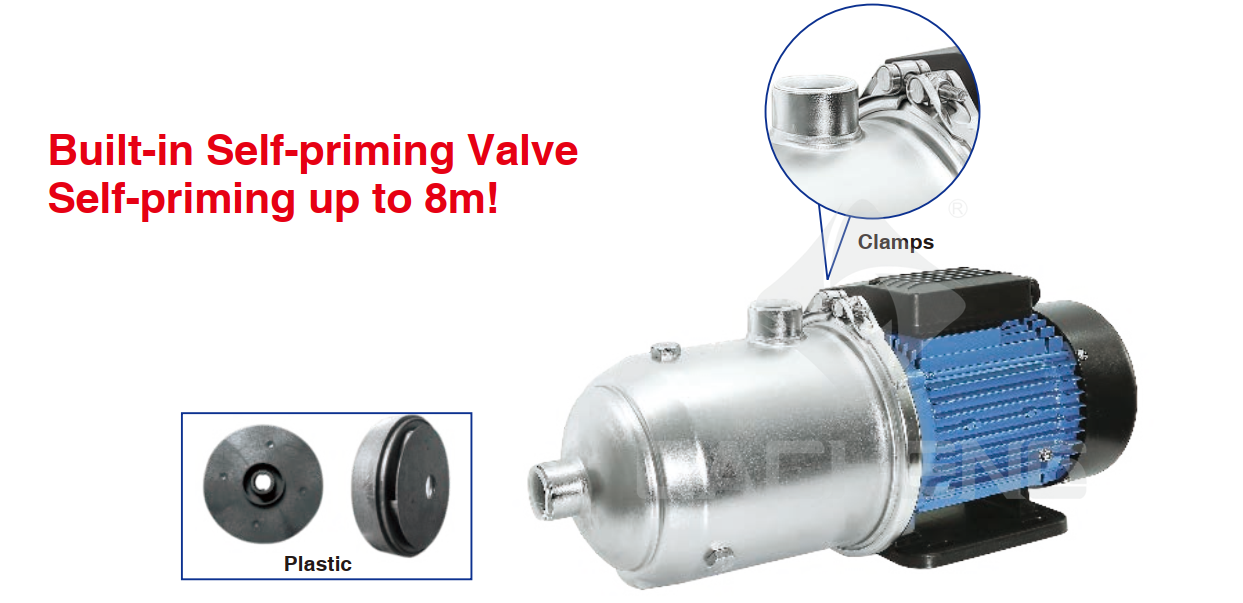

CBAE Horizontal Multistage Stainless Steel Centrifugal Pump (Economic Series)

Max. liquid temperature: 50℃
Max. ambient temperature: 40℃
Max. working pressure: 0.8MPa
Continuous duty
Two-Pole induction motor (n=2900 r/min)
Insulation Class F
Protection IP55

coming soon


Operating Limits:

Max. liquid temperature: 50℃

Max. ambient temperature: 40℃

Max. working pressure: 0.8MPa

Continuous duty


Motor:

Two-Pole induction motor (n=2900 r/min)

Insulation Class F

Protection IP55


Material:

Pump body: AISI 304 Stainless Steel

Impeller/diffuser: Plastic

Motor Shaft: Stainless Steel

Mechanical seal: Ceramic/Graphite


Application:

Aggressive liquids transfer

Pumping and distribution of water in domestic systems used

on a continuous or intermittent basis.

Booster systems

Washing systems, garden irrigation, fountains
