Operating Limits:

Normal temperature type: 15℃~+70℃

Hot water type: +70℃~+104℃

Max. Ambient temperature: 50℃

Max. Operature pressure: 25bar

Max. Altitude: 1000m

Radial suction, radial discharge

Motor:

T.E.F.C. Continuous duty

Insulation class: F

Protection class: IP55

Standard voltage:

1×220~240V/50Hz

3×230V/400V/50Hz(Power≤ 3kw)

3×400V/690V/50Hz(Power≥4kw)

Single-phase motor have a built-in thermal overload switch.

Three-phase motors must be connected to a motor starter in

accordance with local regulations.

Material:

The material variant (VMS, VMN) should be selected

based of the liquid to be pumped.

VMS wetted parts are made of AISI304/AISI316.

VMN inlet and outlet chamber is made of cast-iron and

wetted parts are made of AISI304/AISI316.

Applications:

Water supply

Filtration and transfer at waterworks

Distribution from waterworks

Pressure boosting in mains

Pressure boosting in high-rise buildings, hotels, etc.

Pressure boosting for industrial water supply

Industry

Pressure boosting in...

Process water systems

Washing and cleaning systems

Vehicle washing tunnels

Fire fighting systems

Liquid transfer in...

Cooling and air-conditioning systems(refrigerants)

Boiler feed and condensate systems

Machine tools (cooling lubricants)

Aquafarming

Transfer of...

Oil and alcohol

Acids and alkali

Glycol and coolants

Water treatment

Ultra-filtration systems

Reverse osmosis systems

Softening, ionising, demineralizing systems

Distillation systems

Separators

Swimming baths

Irrigation

Field irrigation(flooding)

Sprinkler irrigation

Drip-feed irrigation

Viscosity:

The pumping of liquids with densities or kinematic

viscosities higher than those of water will cause a

considerable pressure drop, a drop in the hydraulic

performance and a rise in the power consumption.

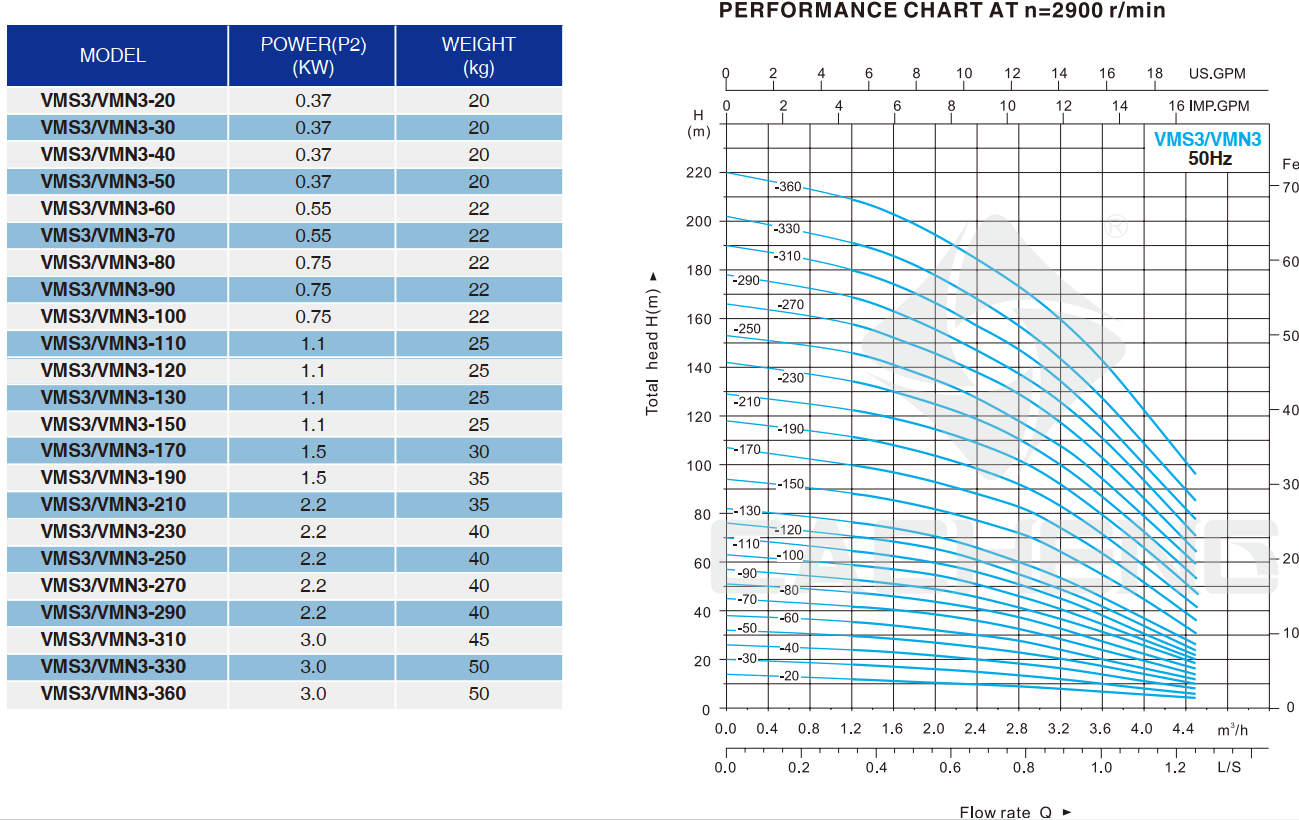

Pump:

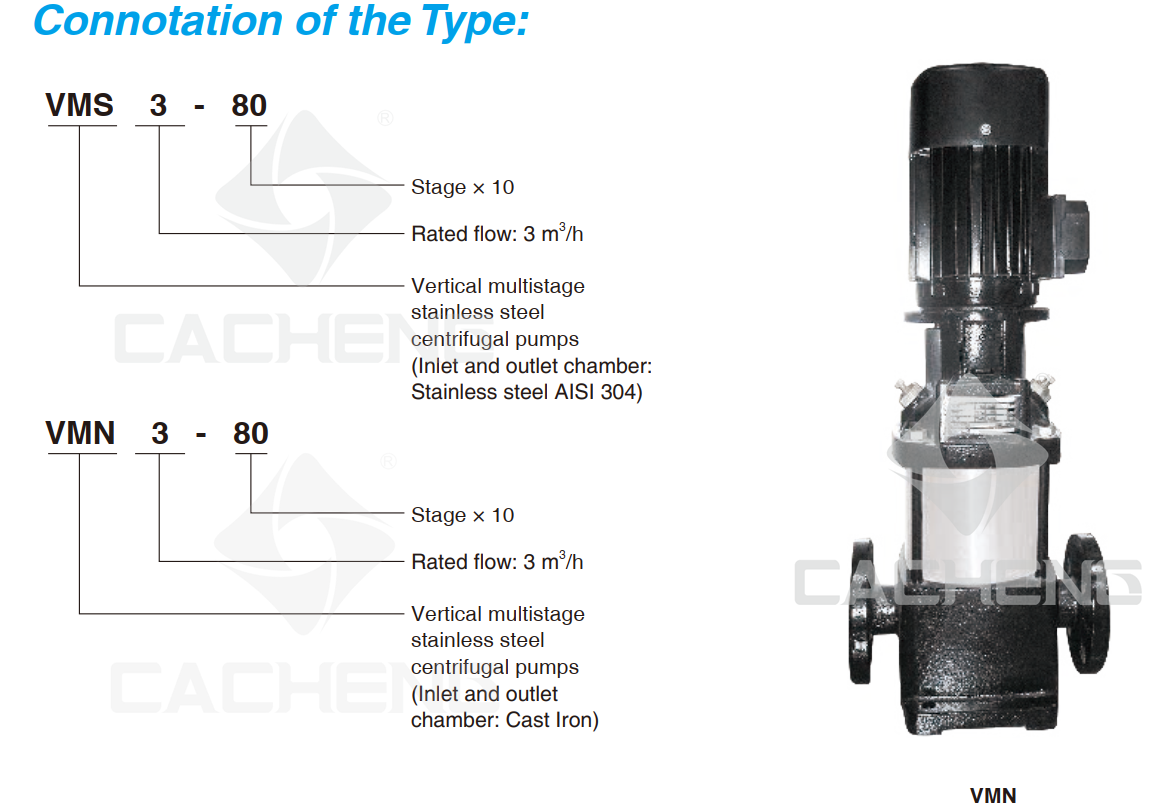

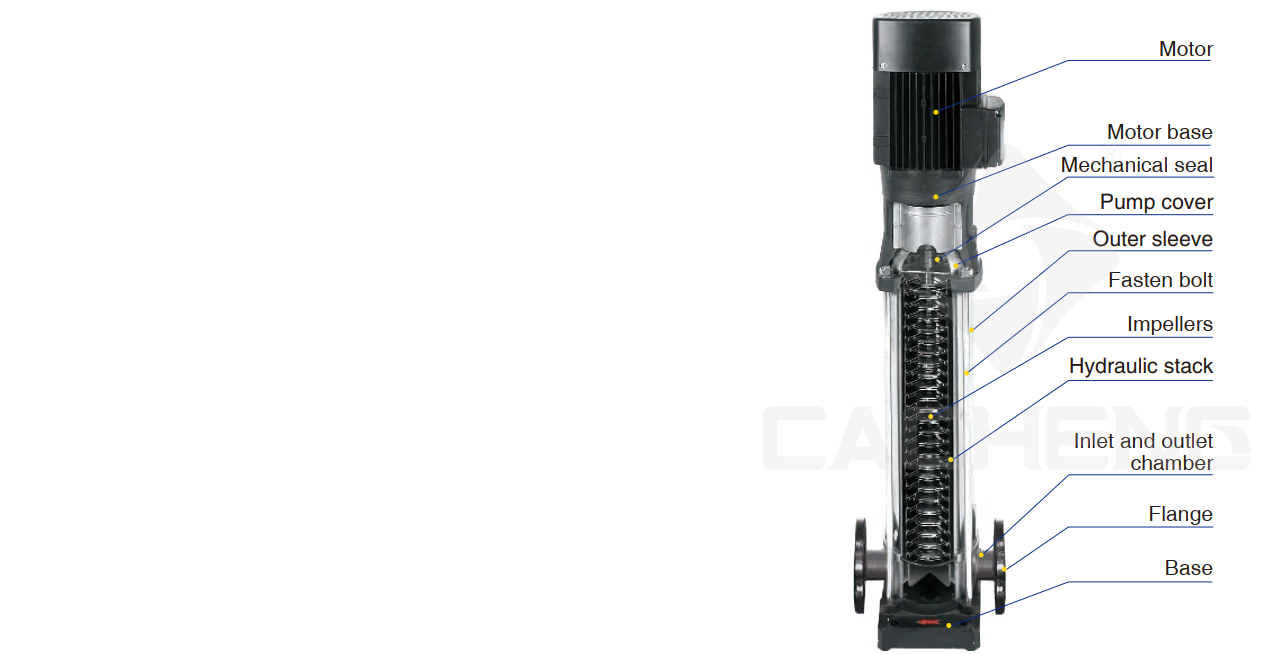

VMS/VMN are a kind of non-self priming vertical multistage

centrifugal pump, the pumps are available with standard

motor, the inlet and outlet are located at the pump bottom at

the same plane (inline type). all pumps are equipped with a

maintenance-free mechanical seal set of the cartridge tyre.

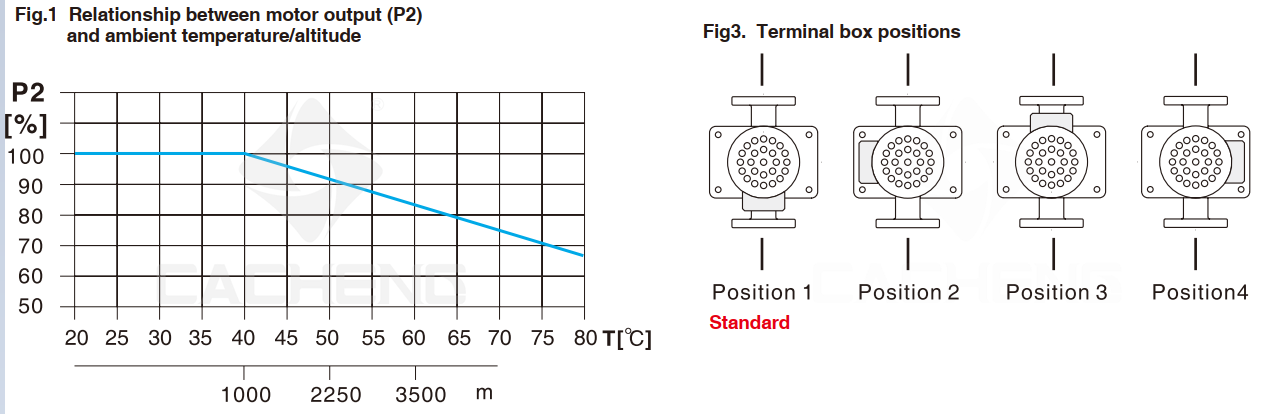

Terminal Box Positions:

As standard the terminal box is mounted on the suction

side of the pump, meanwhile, 0, 90, 180, 270 could be

adjusted according to the following proceeding:

1. If necessary, disassembling the protective cover of the shaft

connector, but not disassembling the shaft connector.

2. Disassembling the motor fixation screws.

3. Turn the motor to the required direction.

4. Fasten the motor screws.

5. Install the shaft connector's protective cover.

The voltage and frequency are marked on the label, the

correct power should be confirmed with the label before

usage.

To ensure the electric connection is conformity to the

drawing marked on the label inside the terminal box.
