Operating Limits:
Max. operating pressure: 12 bar
Head up to 95m
Liquid temperature up to +105℃
Max. ambient temperature: 40℃
Max. altitude: 1000m
Motor:
Three phase induction motor
Insulation Class B
Protection IPX4
Continuous duty
Standard voltage:
Three-phase: 220/380-50Hz up to 3KW(4HP)
380/660V-50Hz from 4KW(5.5HP)
to 37KW(50HP)

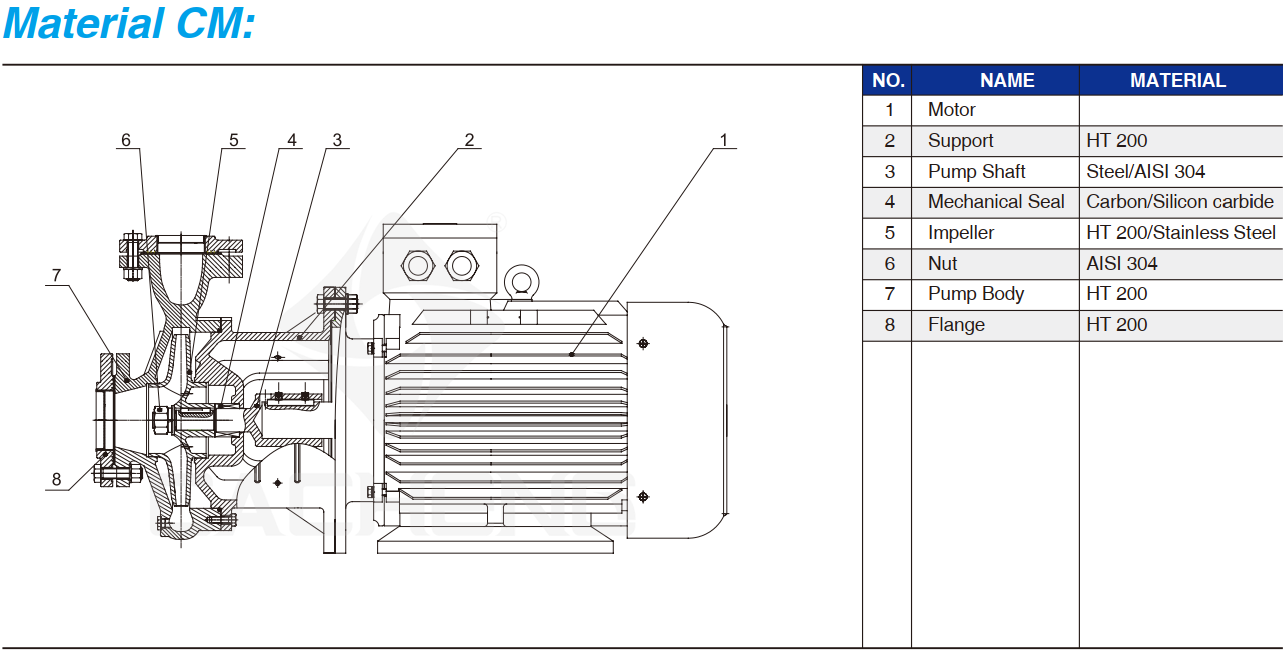

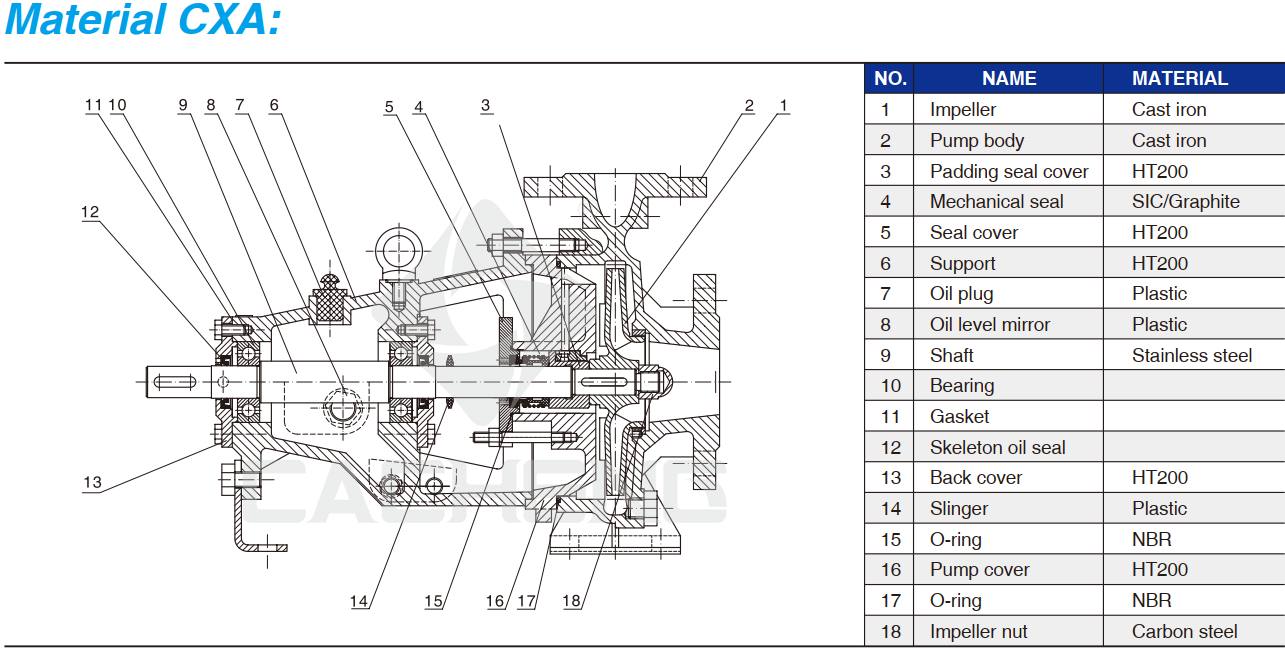

Material:
Pump body:Cast Iron/ Stainless Steel
Impeller:Cast Iron
Motor Shaft:Stainless Steel
Mechanical seal:SiC/Graphite
Motor housing:Cast Iron
Application:
Circulation and transfer of clean, chemical
non-aggressive water and other liquids
Water supply & irrigation
Water circulation in air conditioning systems
Application:

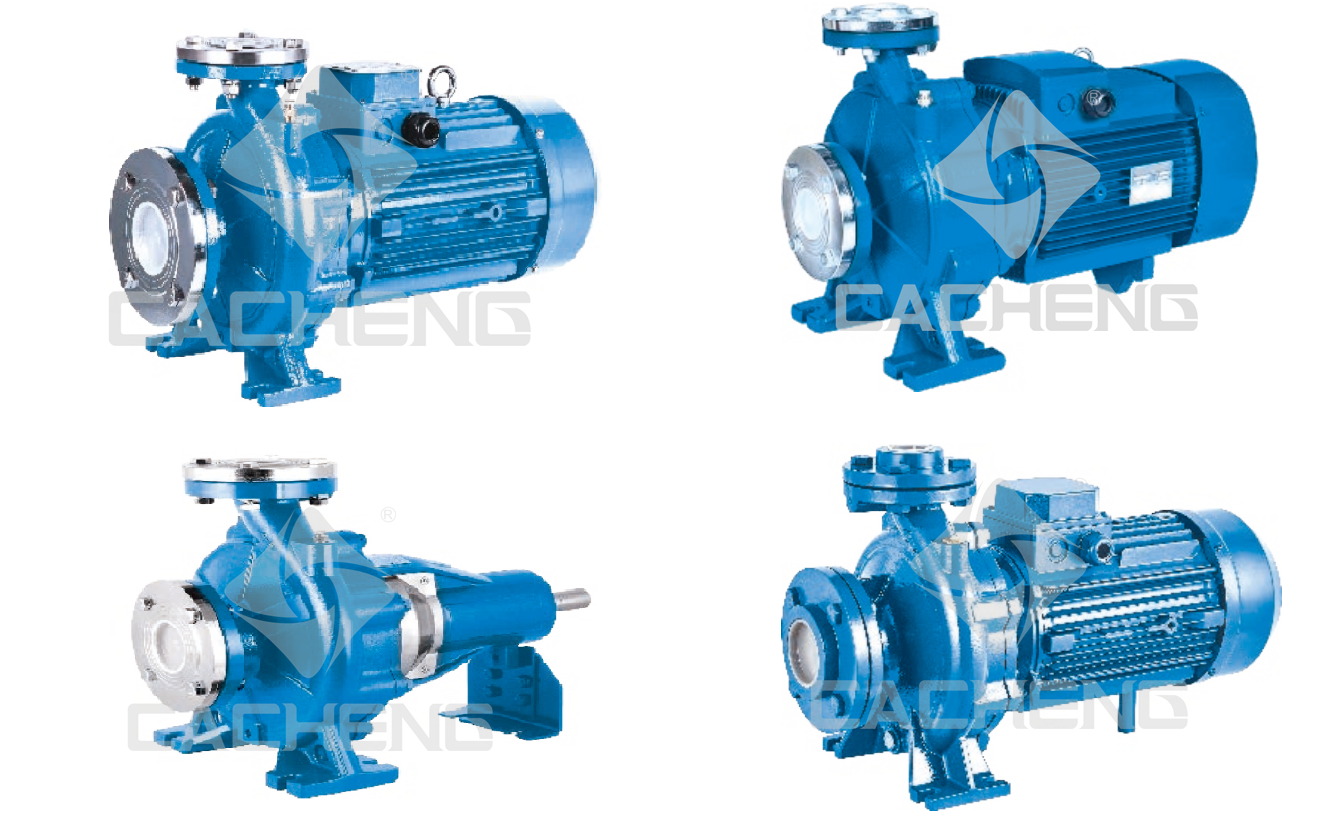

Single-impeller centrifugal pump featuring axial intake and radial discharge
Inlet and outlet DN in compliance with EN 733 (ex DIN 24255) and UNI 7467
Flanges in compliance with UNI 2236 and DIN 2532
Rear entry (impeller, control valve and motor can be extracted without
disconnecting the pump body from the pipes.)
