Operating Limits:

Liquid temperature:

Normal temperature type +15℃~+70℃

Hot water type + 70℃ ~105℃

Max. ambient temperature: 40℃

Continuous duty

Materials:

Pump body, back-cover, impeller, shaft and

guide plate in AISI 304

Bracket and motor casing: Aluminum

Mechanical seal: Ceramic / Graphite / NBR

Motor:

Two-pole induction motor(n=2900r/min)

Insulation Class F

Protection IP55

Materials:

Pump body, impeller,diffuser and casing cover

in AISI 304 stainless steel

Motor shaft:Stainless steel

Mechanical seal: Ceramic / Graphite / NBR

Applications:

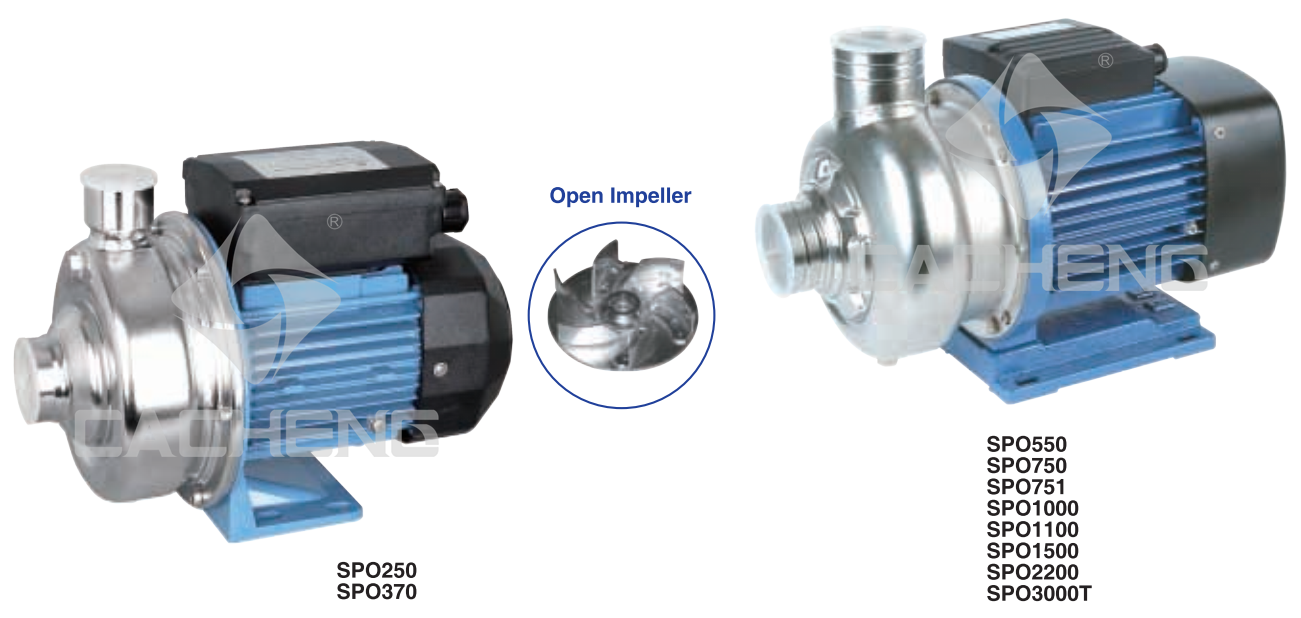

Open impeller centrifugal pumps with the hydraulic components

manufactured from stainless steel AISI 304,suitable for

suspended solids handling food process,e.g. bottles,jars,

glasses and crates.Process applications such as painting plants

and general dirty liquid handling.
