Operating Limits:

Liquid temperature:

Normal temperature type +15ºC~+70ºC

Hot water type + 70ºC ~105ºC

Max. ambient temperature: 40ºC

Continuous duty

Motor:

Two-Pole induction motor (n=2900 r/min)

Insulation Class F

Protection IP55

Materials:

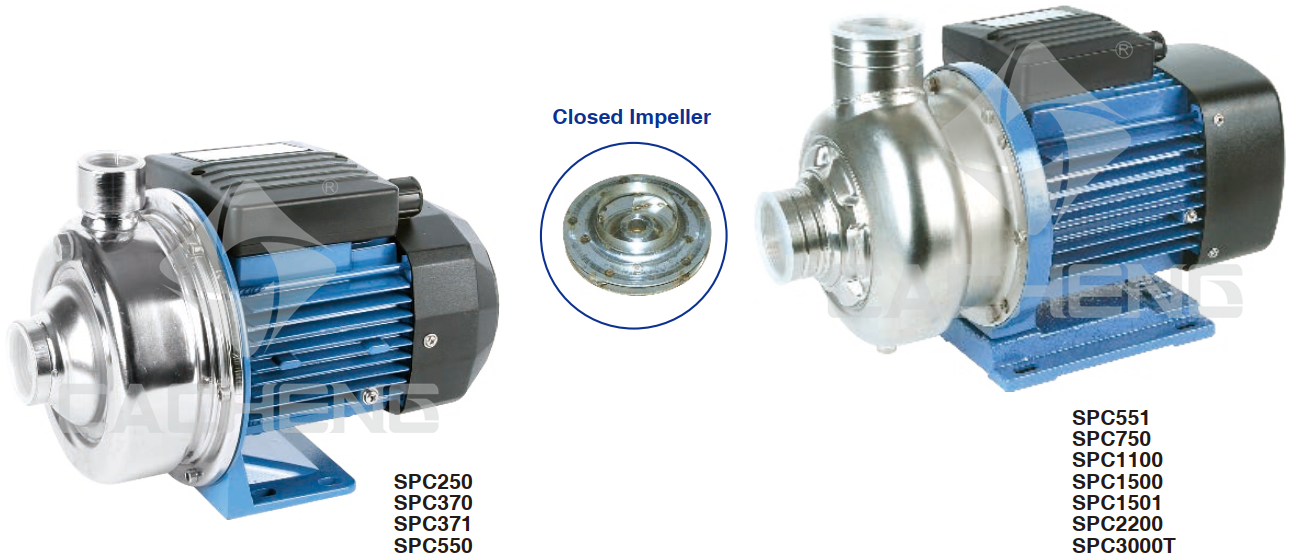

Pump body, impeller, diffuser and casing cover

in AISI 304 stainless steel

Motor shaft: Stainless steel

Mechanical seal: Ceramic / Graphite / NBR

Applications:

This pump is suitable for water supply and general

water pumping, refrigeration plants, conditioning and

heating systems, cellars.
