Operating Limits:

The temperature of pumping liquid does not exceed 100ºC

The ambient temperature does not exceed 40ºC

The maximum suction distance is 9m

Motor:

Two-Pole induction motor(n=2900r/min)

Insulation: Class F

Protection: IP44

Continuous service: S1

Thermal protector

Single-phase: 220V/50Hz

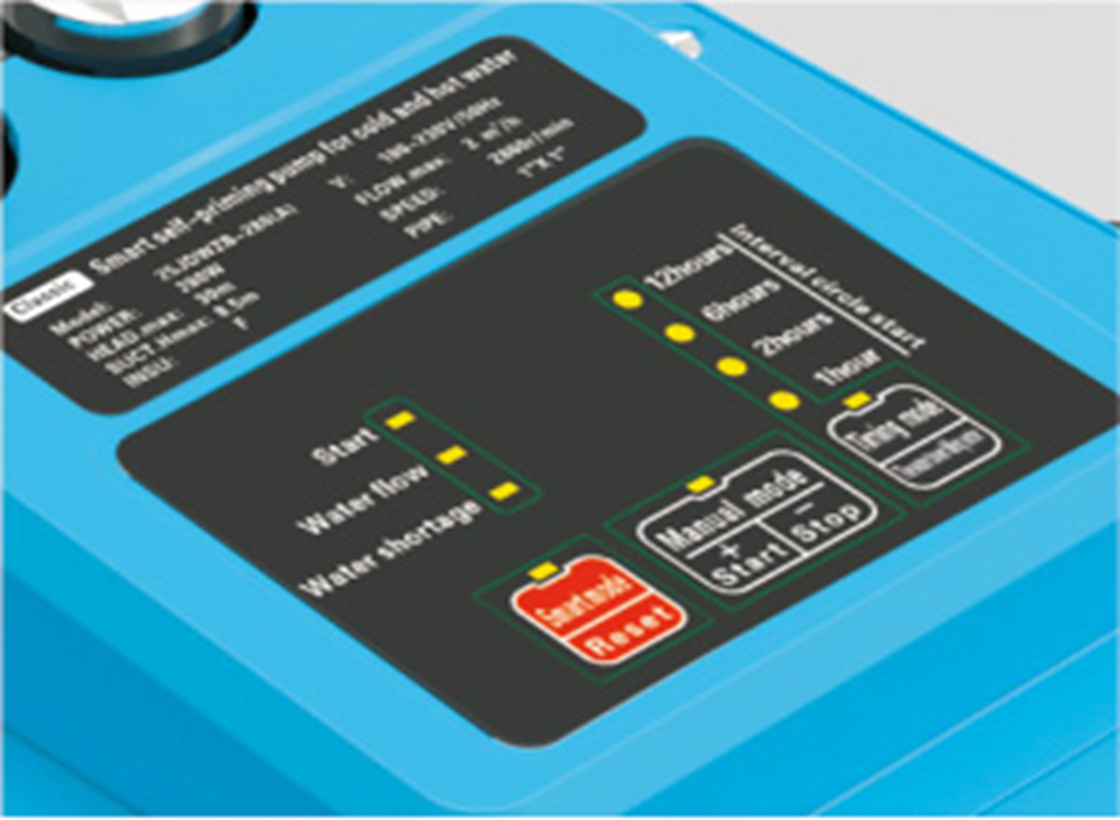

Function:

Linear pressure sensor is used to control the starting pressure

of pump instead of traditional mechanical switch. At the same

time, it has advanced flow control system.

The functions of the pump include:

1. Stepless voltage regulation; 2. Plug-in and play;

3. Intelligent learning; 4. Intelligent overlapping;

5. Flow control; 6. Water shortage protection;

7. Automatic opening of water supply;

8. Timing function; 9. Turn-off protection;

10. Electrophoresis rust prevention

Application:

Suitable for well water pumping, family, hotel, hotel, canteen, garden

irrigation and other clean water pressurization, but also solar energy,

water heater, central air conditioning and other equipment supporting

pressurization preferred.
