Operating Limits:

Max. suction head: 8m

Max. liquid temperature: 60ºC

Max. ambient temperature: 40ºC

Continuous duty

Motor:

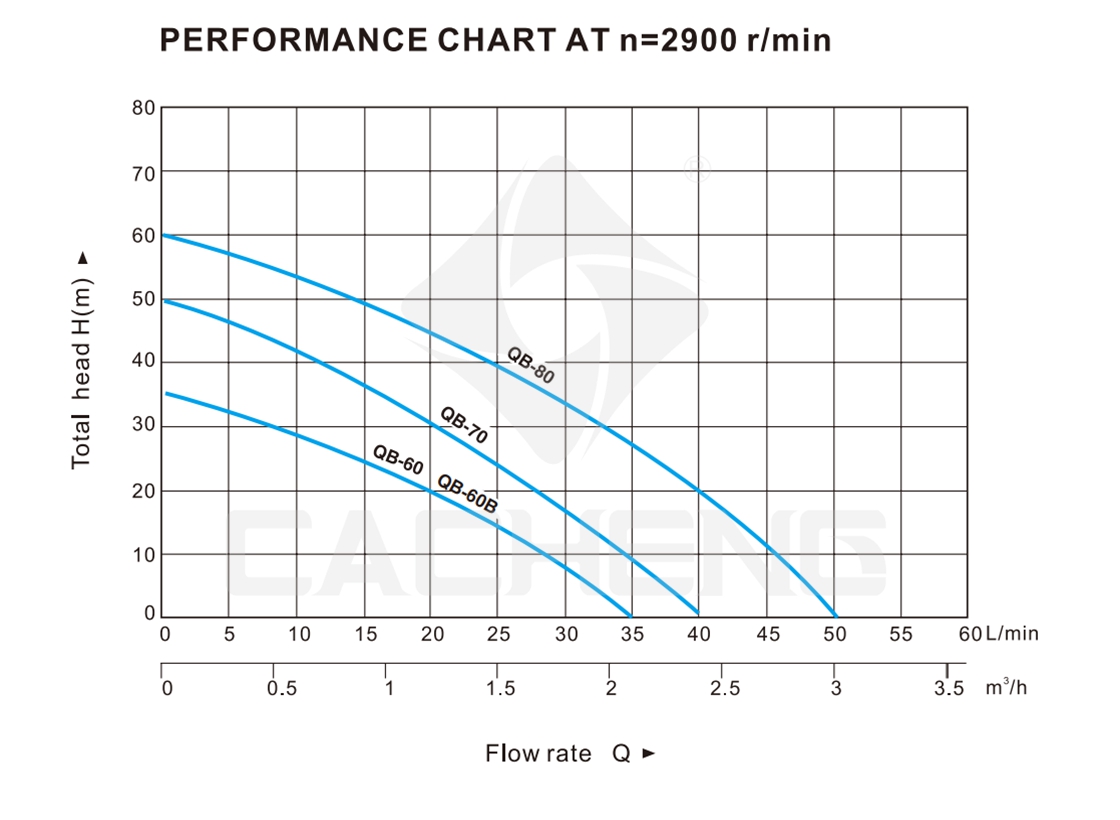

Two-Pole induction motor (n=2900 r/min)

Insulation Class B

Protection IPX4

Material:

Pump Body:Cast Iron

Motor Bracket:Cast Iron (or with Brass/S.S.Insert)

Impeller:Brass

Motor Shaft:Carbon Steel (or Stainless Steel)

Mechanical Seal:Ceramic/Graphite

Installation and Use:

They are recommended for pumping clean water without

abrasive particles and liquids that are chemically non

aggressive to the materials from which the pump is made.

For their reliability, simplicity of use and economy they are

suitable for domestic use and in particular for distributing

water in combination with small pressure sets, for irrigating

gardens.

The pumps must be installed in closed places, or at least

protected against inclement weather
