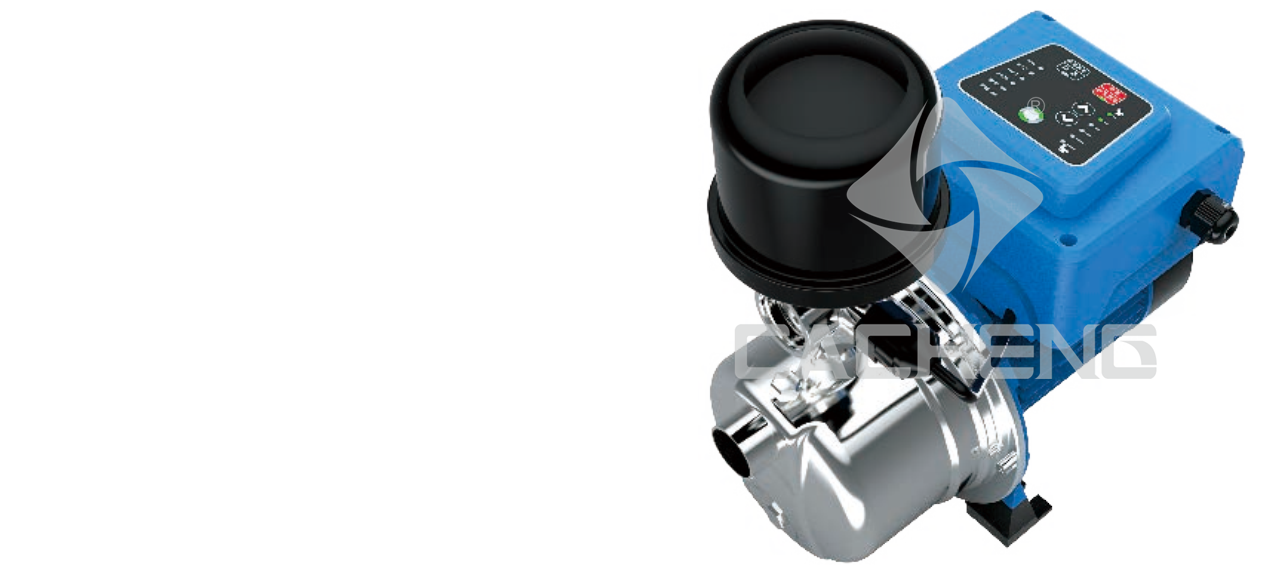

CFK Frequency Conversion Jet Pump

Max. suction head: 9.5m
Max. liquid temperature: 100℃
Max. ambient temperature: 40℃
Electric pump speed:(n=2900r/min)
Insulation: Class F
Protection: IP44
Continuous service: S1
Thermal protector
Single-phase: 220v/50Hz, 60Hz if request

coming soon


Operating Limits:

Max. suction head: 9.5m

Max. liquid temperature: 100℃

Max. ambient temperature: 40℃


Motor:

Electric pump speed:(n=2900r/min)

Insulation: Class F

Protection: IP44

Continuous service: S1

Thermal protector

Single-phase: 220v/50Hz, 60Hz if request


Material:

Pump body: Stainless steel

Pump support: Cast iron, stainless steel inserts

Motor housing: Aluminum

Impeller: Stainless steel or copper

Motor shaft: Stainless steel shaft

Mechanical seal: Silicon carbide

Bearing: 6201(480W) 6202(680w-880W)


Function:

Linear pressure sensor is used to control the starting pressure

of pump instead of traditional mechanical switch.

At the same time, it has advanced flow control system.

The functions of the pump include:

1. Stepless voltage regulation

2. Plug-in and play

3. Intelligent learning

4. Intelligent overlapping

5. Flow control

6. Water shortage protection

7. Automatic opening of water supply

8. Timing function

9. Turn-off protection

10. Electrophoresis rust prevention


Application:

Suitable for well water pumping, family, hotel, canteen, garden

irrigation other clean water pressurization, but also solar energy,

water heater, central air conditioning and other equipment

supporting pressurization preferred.
