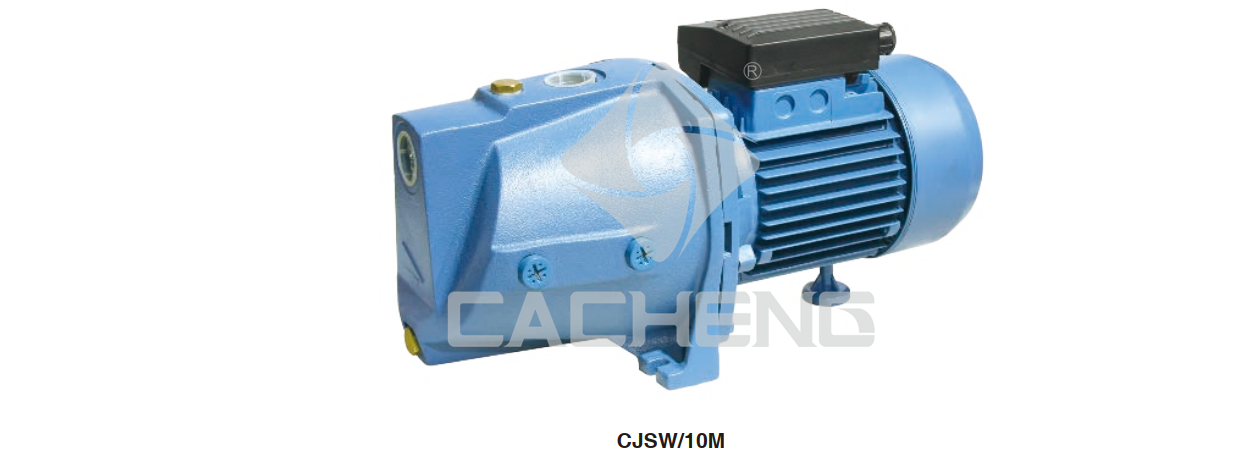

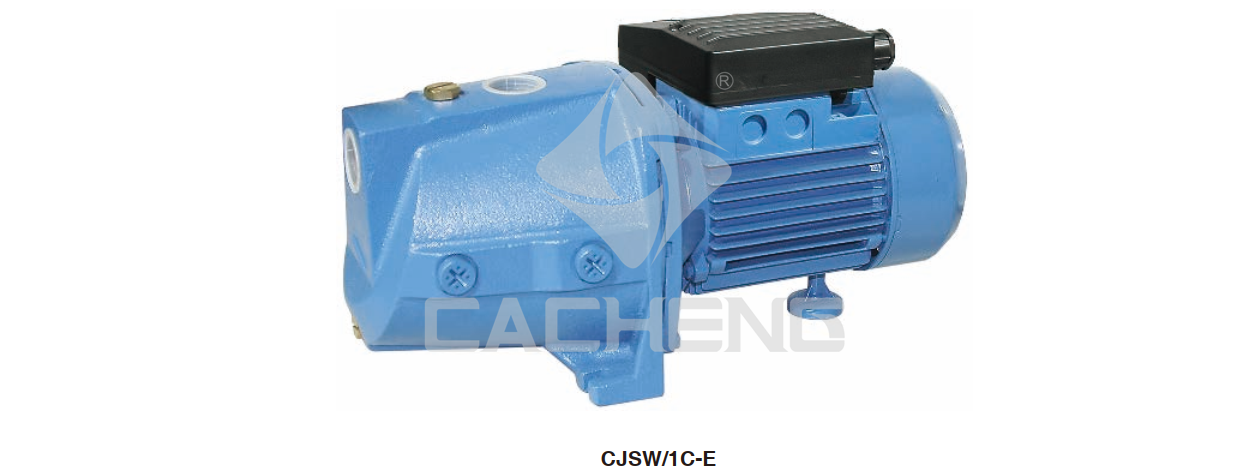

CJSW Self-priming Jet Pump

Max. suction head: 8m
Max. liquid temperature: 60℃
Max. ambient temperature: 40℃
Continuous duty
Two-Pole induction motor (n=2900 r/min)
Insulation Class B
Protection IPX4

coming soon


Operating Limits:

Max. suction head: 8m

Max. liquid temperature: 60℃

Max. ambient temperature: 40℃

Continuous duty


Motor:

Two-Pole induction motor (n=2900 r/min)

Insulation Class B

Protection IPX4


Material:

Pump Body:Cast Iron

Impeller:Brass / Plastic / Stainless Steel

Motor Shaft:Carbon Steel / AISI 420 Stainless Steel /AISI 304 Stainless Steel

Mechanical Seal:Ceramic / Graphite


Installation and Use:

They are recommended for pumping clean water and liquids that are chemically

non aggressive to the materials from which the pump is made.

They are designed for suction lifts and can be positioned above the water source,

including applications with air entrained in the water. Due to their reliability and low

maintenance, they are recommended for domestic use, including water distribution

(as part of a pressure set), garden irrigation, etc.

The pumps must be installed in closed places, or at least protected against

inclement weather.




Operating Limits:

Max. suction head: 8m

Max. liquid temperature: 60℃

Max. ambient temperature: 40℃

Continuous duty


Motor:

Two-Pole induction motor (n=2900 r/min)

Insulation Class B

Protection IPX4


Material:

Pump Body:Cast Iron

Impeller:Brass / Plastic / Stainless Steel

Motor Shaft:Carbon Steel/AISI 420 Stainless Steel/AISI 304 Stainless Steel

Mechanical Seal:Ceramic / Graphite


Installation and Use:

They are recommended for pumping clean water and

liquids that are chemically non aggressive to the materials

from which the pump is made.

They are designed for suction lifts and can be positioned

above the water source, including applications with air

entrained in the water. Due to their reliability and low

maintenance, they are recommended for domestic use,

including water distribution (as part of a pressure set),

garden irrigation, etc.

The pumps must be installed in closed places, or at least

protected against inclement weather.
