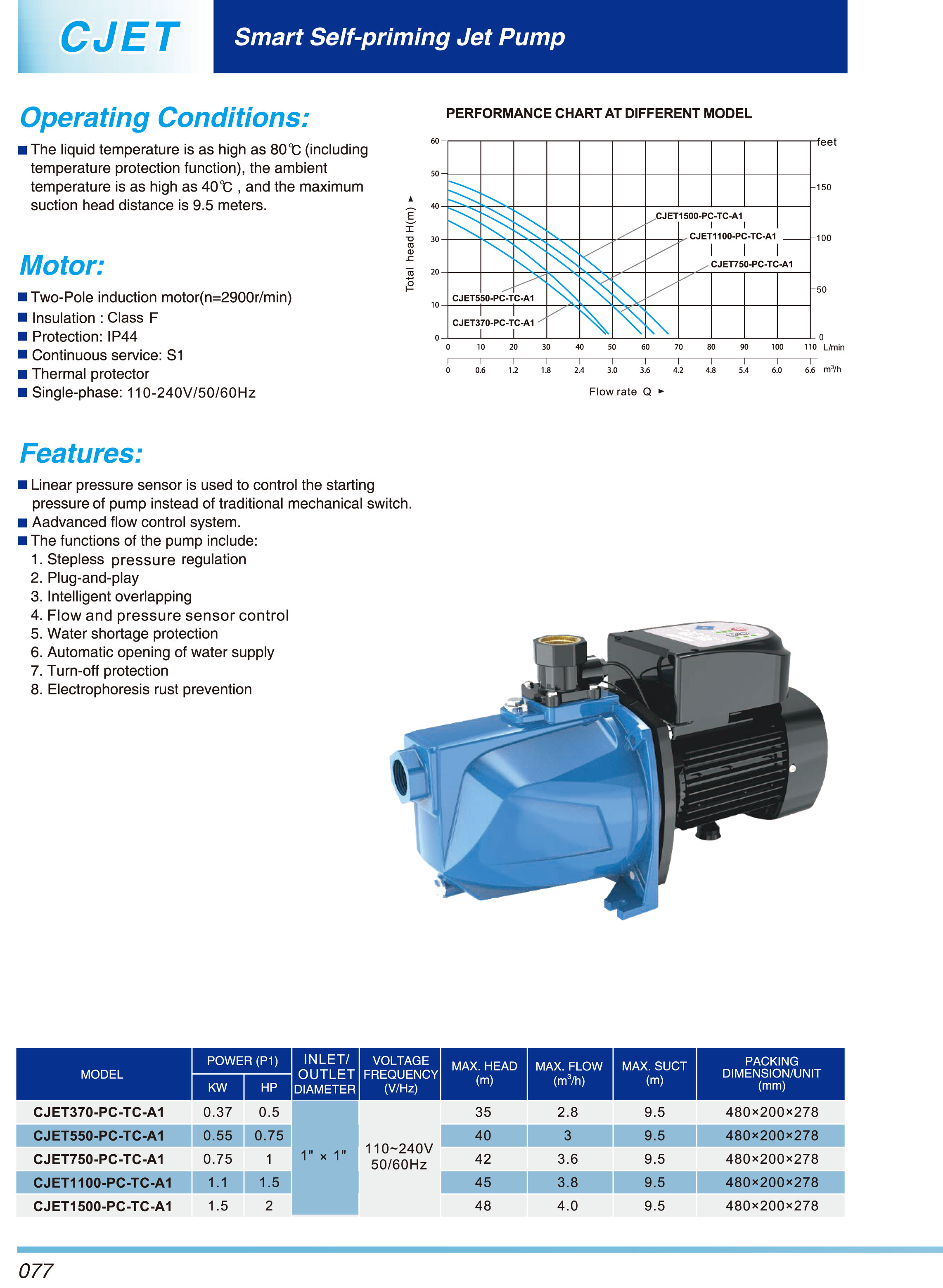

Operating Conditions:

The liquid temperature is as high as 80℃ (including

temperature protection function), the ambient

temperature is as high as 40℃ , and the maximum

suction head distance is 9.5meters.

Motor:

Two-Pole induction motor(n=2900r/min)

Insulation : Class F

Protection:IP44

Continuous service: S1

Thermal protector

Single-phase: 110-240V/50/60Hz

Features:

Linear pressure sensor is used to control the starting

pressure of pump instead of traditional mechanical switch.

Aadvanced flow control system.

The functions of the pump include:

1. Stepless pressure regulation

2. Plug-and-play

3. Intelligent overlapping

4. Flow and pressure sensor control

5. Water shortage protection

6. Automatic opening of water supply

7. Turn-off protection

8. Electrophoresis rust prevention
