Operating Limits:

Maximum liquid temperature:50℃

Maximum immersion: 5 m

Maximum passage of solids: 10 mm

Motor:

Two-Pole induction motor (n=2900r/min)

Insulation Class F

Protection IPX8

1~230V ± 10%, 50Hz - 3~400V ± 10%, 50Hz

Single-phase: permanent split capacitor and automatic

thermal overload protection

Three-phase: thermal protection

Material:

Pump casing, impeller, strainer, cover, casing cover and motor

casing in AISI 304

Shaft in AISI 304

Double mechanical seal with interposed oil chamber

upper in carbon-ceramic/NBR

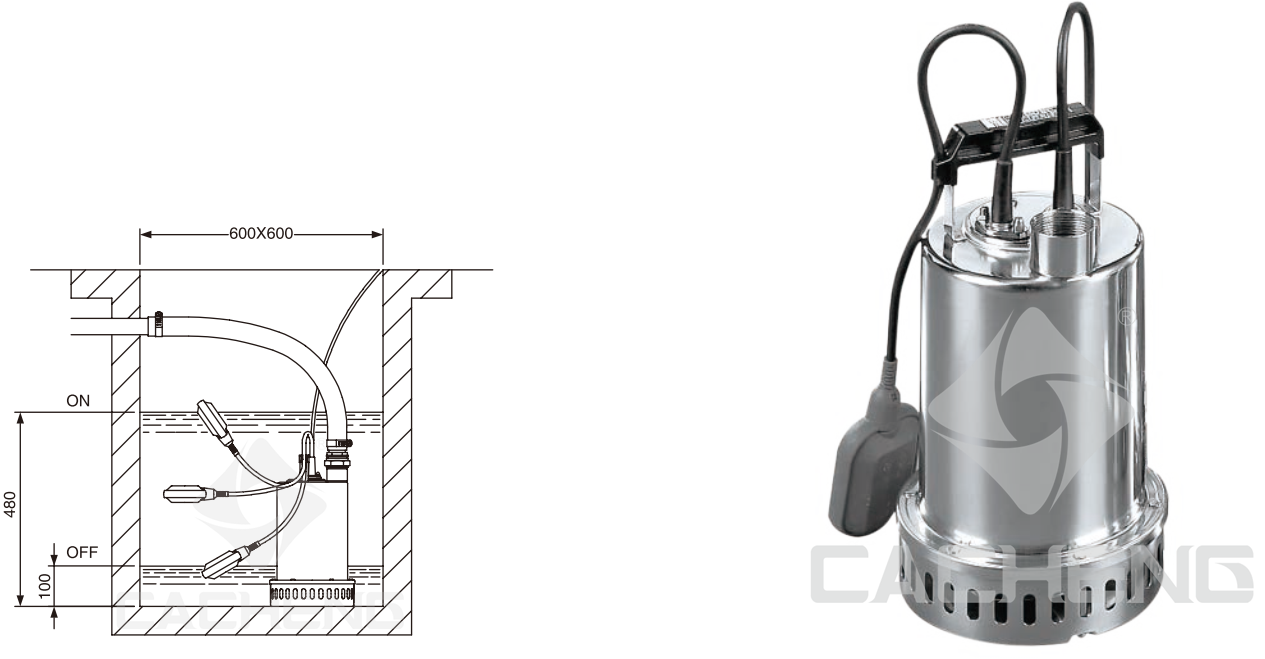

Application:

Submersible sump pump is made of stainless steel AISI 304, its

double mechanical seals ensure long life and reliability. Suitable

for draining wells, plant room sump, lift shaft emptying, pools,

sumps, irrigation, and water displays. Options include with - without

float switch. Solids handling up to 10 mm
