Operating Limits:

Max. liquid temperature: 40℃

Max. immersion depth: 70m

Min. diameter of well: Φ 75mm

Motor:

Rewindable enclosed induction motor or full obturated

screen coil motor (n=2900r.p.m.)

Built-in thermal overload protector with automatic reset

Insulation Class B

Protection IP68

With control box

Application:

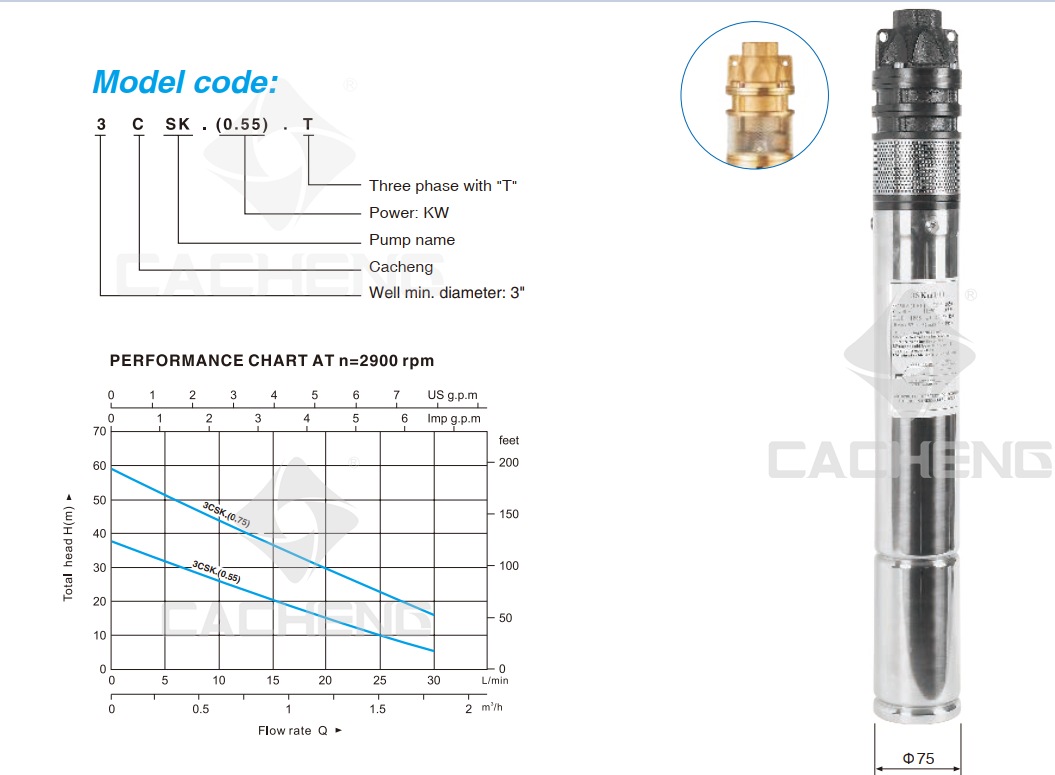

Multistage submersible water pumps for 3” deep wells

particularly suitable for civilian and industrial purposes

such as application to sprinkler and food plants, fire installation, etc.

Water supply from wells or reservoirs, for garden use and irrigation
